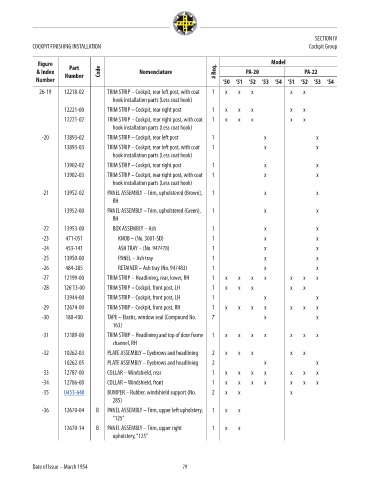

SECTION IV
COCKPIT FINISHING INSTALLATION Cockpit Group

Figure Model
& Index Part Code Nomenclature # Req. PA-20 PA-22
Number Number ‘50 ‘51 ‘52 ‘53 ‘54 ‘51 ‘52 ‘53 ‘54 Price
26-19 12218-02 TRIM STRIP – Cockpit, rear left post, with coat 1 x x x x x NM!
hook installation parts (Less coat hook)
12221-00 TRIM STRIP – Cockpit, rear right post 1 x x x x x NM!
12221-02 TRIM STRIP – Cockpit, rear right post, with coat 1 x x x x x NM!
hook installation parts (Less coat hook)
-20 13893-02 TRIM STRIP – Cockpit, rear left post 1 x x NM!
13893-03 TRIM STRIP – Cockpit, rear left post, with coat 1 x x NM!
hook installation parts (Less coat hook)
13902-02 TRIM STRIP – Cockpit, rear right post 1 x x NM!
13902-03 TRIM STRIP – Cockpit, rear right post, with coat 1 x x NM!
hook installation parts (Less coat hook)
-21 13952-02 PANEL ASSEMBLY – Trim, upholstered (Brown), 1 x x NM!
RH

13952-00 PANEL ASSEMBLY – Trim, upholstered (Green), 1 x x NM!
RH
-22 13953-00 BOX ASSEMBLY – Ash 1 x x NM!
-23 471-051 KNOB – (No. 3001-SD) 1 x x NM!
-24 453-141 ASH TRAY – (No. 947478) 1 x x NM!
-25 13950-00 PANEL – Ash tray 1 x x NM!
-26 484-385 RETAINER – Ash tray (No. 947483) 1 x x NM!
-27 12199-00 TRIM STRIP – Headlining, rear, lower, RH 1 x x x x x x x NM!
-28 126’13-00 TRIM STRIP – Cockpit, front post, LH 1 x x x x x NM!
13944-00 TRIM STRIP – Cockpit, front post, LH 1 x x NM!
-29 12674-00 TRIM STRIP – Cockpit, front post, RH 1 x x x x x x x NM!

-30 180-400 TAPE – Elastic, window seal (Compound No. 7’ x x NM!
163)
-31 12189-00 TRIM STRIP – Headlining and top of door frame 1 x x x x x x x NM!
channel, RH
-32 10262-03 PLATE ASSEMBLY – Eyebrows and headlining 2 x x x x x NM!
10262-05 PLATE ASSEMBLY – Eyebrows and headlining 2 x x NM!
-33 12787-00 COLLAR – Windshield, rear 1 x x x x x x x NM!
-34 12786-00 COLLAR – Windshield, front 1 x x x x x x x NM!
-35 U453-640 BUMPER – Rubber, windshield support (No. 2 x x x 4.4
285)
-36 12670-04 B PANEL ASSEMBLY – Trim, upper left upholstery, 1 x x NM!
“125”
12670-14 B PANEL ASSEMBLY – Trim, upper right 1 x x NM!
upholstery, “125”

Date of Issue – March 1954 79
