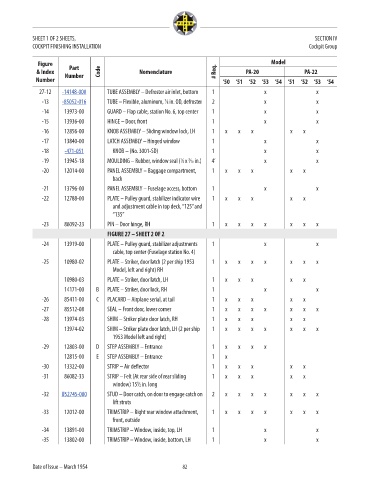

Page 110 - Piper PA-20 Interactive Digital Parts Catalog

SHEET 1 OF 2 SHEETS, SECTION IV
COCKPIT FINISHING INSTALLATION Cockpit Group

Figure Model
& Index Part Code Nomenclature # Req. PA-20 PA-22
Number Number ‘50 ‘51 ‘52 ‘53 ‘54 ‘51 ‘52 ‘53 ‘54 Price
27-12 -14148-000 TUBE ASSEMBLY – Defroster air inlet, bottom 1 x x 313.62
-13 -85052-016 TUBE – Flexible, aluminum, ⁄8 in. OD, defroster 2 x x 90.44
7
-14 13973-00 GUARD – Flap cable, station No. 6, top center 1 x x NM!
-15 13936-00 HINGE – Door, front 1 x x NM!
-16 12856-00 KNOB ASSEMBLY – Sliding window lock, LH 1 x x x x x NM!
-17 13840-00 LATCH ASSEMBLY – Hinged window 1 x x NM!
-18 -471-051 KNOB – (No. 3001-SD) 1 x x 2.19
-19 13945-18 MOULDING – Rubber, window seal ( ⁄4 x ⁄16 in.) 4’ x x NM!
1
3
-20 12014-00 PANEL ASSEMBLY – Baggage compartment, 1 x x x x x NM!
back
-21 13796-00 PANEL ASSEMBLY – Fuselage access, bottom 1 x x NM!
-22 12788-00 PLATE – Pulley guard, stabilizer indicator wire 1 x x x x x NM!
and adjustment cable in top deck, “125” and
“135”
-23 86092-23 PIN – Door hinge, RH 1 x x x x x x x NM!
FIGURE 27 – SHEET 2 OF 2 x

-24 13919-00 PLATE – Pulley guard, stabilizer adjustments 1 x x NM!
cable, top center (Fuselage station No. 4)
-25 10980-02 PLATE – Striker, door latch (2 per ship 1953 1 x x x x x x x NM!
Model, left and right) RH
10980-03 PLATE – Striker, door latch, LH 1 x x x x x NM!
14171-00 B PLATE – Striker, door lock, RH 1 x x NM!
-26 85411-00 C PLACARD – Airplane serial, at tail 1 x x x x x NM!
-27 85512-08 SEAL – Front door, lower corner 1 x x x x x x x NM!
-28 13974-03 SHIM – Striker plate door latch, RH 1 x x x x x NM!
13974-02 SHIM – Striker plate door latch, LH (2 per ship 1 x x x x x x x NM!
1953 Model left and right)
-29 12803-00 D STEP ASSEMBLY – Entrance 1 x x x x NM!
12815-00 E STEP ASSEMBLY – Entrance 1 x NM!
-30 13322-00 STRIP – Air deflector 1 x x x x x NM!
-31 86082-33 STRIP – Felt (At rear side of rear sliding 1 x x x x x NM!
window) 15 ⁄2 in. long
1
-32 U52745-000 STUD – Door catch, on door to engage catch on 2 x x x x x x x 5.07
lift struts
-33 12012-00 TRlMSTRIP – Right rear window attachment, 1 x x x x x x x NM!
front, outside
-34 13891-00 TRIMSTRIP – Window, inside, top, LH 1 x x NM!
-35 13802-00 TRIMSTRIP – Window, inside, bottom, LH 1 x x NM!

Date of Issue – March 1954 82
