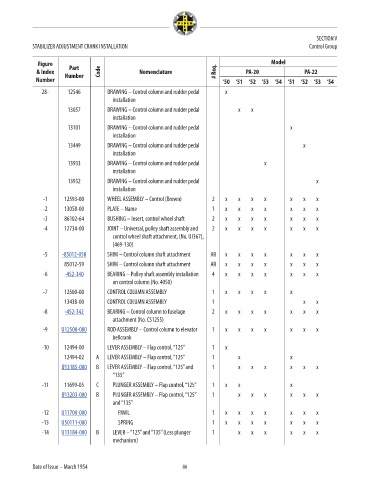

P. 114

SECTION V
            STABILIZER ADJUSTMENT CRANK INSTALLATION                                                   Control Group

              Figure                                                                       Model
             & Index    Part      Code         Nomenclature             # Req.    PA-20               PA-22
             Number   Number                                               ‘50 ‘51 ‘52 ‘53 ‘54 ‘51 ‘52 ‘53 ‘54                         Price
               28-     12546         DRAWING – Control column and rudder pedal   x                                               NM!
                                      installation
                       13057         DRAWING – Control column and rudder pedal   x  x                                            NM!
                                      installation

                       13101         DRAWING – Control column and rudder pedal                   x                               NM!
                                      installation
                       13449         DRAWING – Control column and rudder pedal                       x                           NM!
                                      installation
                       13933         DRAWING – Control column and rudder pedal          x                                        NM!
                                      installation
                       13932         DRAWING – Control column and rudder pedal                            x                      NM!
                                      installation
               -1     12593-00       WHEEL ASSEMBLY – Control (Brown)  2    x   x   x   x        x   x    x                      NM!
               -2     13058-00       PLATE – Name                      1    x   x   x   x        x   x    x                      NM!
               -3     86102-64       BUSHING – Insert, control wheel shaft  2  x  x  x  x        x   x    x                      NM!
               -4     12734-00       JOINT – Universal, pulley shaft assembly and   2  x  x  x  x  x  x   x                      NM!
                                      control wheel shaft attachment, (No. UJ367),
                                      (469-130)
               -5     -85012-058     SHIM – Control column shaft attachment  AR  x  x  x  x      x   x    x                      18.65
                      85012-59       SHIM – Control column shaft attachment  AR  x  x  x  x      x   x    x                      NM!
               -6     -452-340       BEARING – Pulley shaft assembly installation   4  x  x  x  x  x  x   x                      20
                                      on control column (No. 4050)
               -7     12500-00       CONTROL COLUMN ASSEMBLY           1    x   x   x   x        x                               NM!
                      13438-00       CONTROL COLUMN ASSEMBLY           1                             x    x                      NM!
               -8     -452-342       BEARING – Control column to fuselage   2  x  x  x  x        x   x    x                      10
                                      attachment (No. CS1255)
               -9    U12508-000      ROD ASSEMBLY – Control column to elevator   1  x  x  x  x   x   x    x                      516.8
                                      bellcrank
               -10    12494-00       LEVER ASSEMBLY – Flap control, “125”  1  x                                                  NM!
                      12494-02   A   LEVER ASSEMBLY – Flap control, “125”  1    x                x                               NM!
                     U13185-000  B   LEVER ASSEMBLY – Flap control, “125” and   1  x  x  x       x   x    x                      448.73
                                      “135”
               -11    11699-05   C     PLUNGER ASSEMBLY – Flap control, “125”  1  x  x           x                               NM!
                     U13203-000  B     PLUNGER ASSEMBLY – Flap control, “125”   1  x  x  x       x   x    x                      172.06
                                      and “135”
               -12   U11700-000         PAWL                           1    x   x   x   x        x   x    x                      26.17
               -13   U50111-000          SPRING                        1    x   x   x   x        x   x    x                      3.83
               -14   U13184-000  B     LEVER – “125” and “135” (Less plunger   1  x  x  x        x   x    x                      334.33
                                      mechanism)



            Date of Issue – March 1954                       86
