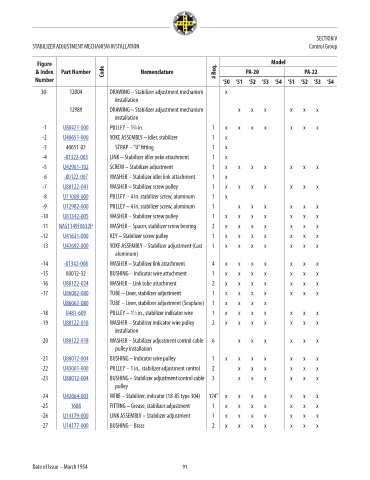

SECTION V
STABILIZER ADJUSTMENT MECHANISM INSTALLATION Control Group

Figure Model
& Index Part Number Code Nomenclature # Req. PA-20 PA-22
Number ‘50 ‘51 ‘52 ‘53 ‘54 ‘51 ‘52 ‘53 ‘54 Price
30- 12004 DRAWING – Stabilizer adjustment mechanism x NM!
installation
12989 DRAWING – Stabilizer adjustment mechanism x x x x x x NM!
installation

3
-1 U80421-000 PULLEY – 1 ⁄4 in. 1 x x x x x x x 12.37
-2 U40651-000 YOKE ASSEMBLY – Idler, stabilizer 1 x 42.97
-3 40651-02 STRAP – “U” fitting 1 x NM!
-4 -81322-003 LINK – Stabilizer idler yoke attachment 1 x 14.25
-5 U42961-102 SCREW – Stabilizer adjustment 1 x x x x x x x 112.38
-6 -80122-007 WASHER – Stabilizer idler link attachment 1 x 6.11
-7 U80122-041 WASHER – Stabilizer screw pulley 1 x x x x x x x 13.35
-8 U11008-000 PULLEY – 4 in. stabilizer screw, aluminum 1 x 186.92
-9 U12982-000 PULLEY – 4 in. stabilizer screw, aluminum 1 x x x x x x 140.67
-10 U81342-005 WASHER – Stabilizer screw pulley 1 x x x x x x x 9.3
-11 NAS1149F0632P WASHER – Spacer, stabilizer screw bearing 2 x x x x x x x 0.06
-12 U41631-000 KEY – Stabilizer screw pulley 1 x x x x x x x 16.1
-13 U42692-000 YOKE ASSEMBLY – Stabilizer adjustment (Cast 1 x x x x x x x 289.01
aluminum)
-14 -81342-008 WASHER – Stabilizer link attachment 4 x x x x x x x 5.21
-15 80012-32 BUSHING – Indicator wire attachment 1 x x x x x x x NM!
-16 U80122-024 WASHER – Link tube attachment 2 x x x x x x x 4.18
-17 U86062-080 TUBE – Liner, stabilizer adjustment 1 x x x x x x x 129.57
U86062-080 TUBE – Liner, stabilizer adjustment (Seaplane) 1 x x x x 129.57
-18 U481-609 PULLEY – 1 ⁄2 in., stabilizer indicator wire 1 x x x x x x x 11.9
1
-19 U80122-018 WASHER – Stabilizer indicator wire pulley 2 x x x x x x x 2.16
installation
-20 U80122-018 WASHER – Stabilizer adjustment control cable 6 x x x x x x 2.16
pulley installation
-21 U80012-004 BUSHING – Indicator wire pulley 1 x x x x x x x 7.45
-22 U43001-000 PULLEY – 1 in., stabilizer adjustment control 2 x x x x x x 18.18
-23 U80012-004 BUSHING – Stabilizer adjustment control cable 3 x x x x x x 7.45
pulley
-24 U42664-003 WIRE – Stabilizer, indicator (18-8S type 304) 124” x x x x x x x 26.19
-25 1688 FITTING – Grease, stabilizer adjustment 1 x x x x x x x 2.26
-26 U14179-000 LINK ASSEMBLY – Stabilizer adjustment 1 x x x x x x x 299.87
-27 U14177-000 BUSHING – Brass 2 x x x x x x x 22.82

Date of Issue – March 1954 91
