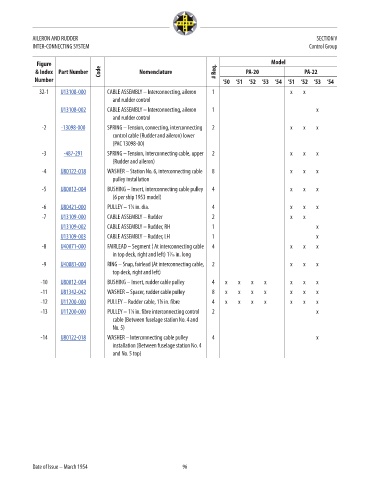

Page 124 - Piper PA-20 Interactive Digital Parts Catalog

AILERON AND RUDDER SECTION V
INTER-CONNECTING SYSTEM Control Group

Figure Model
& Index Part Number Code Nomenclature # Req. PA-20 PA-22
Number ‘50 ‘51 ‘52 ‘53 ‘54 ‘51 ‘52 ‘53 ‘54 Price
32-1 U13108-000 CABLE ASSEMBLY – Interconnecting, aileron 1 x x 526.07
and rudder control
U13108-002 CABLE ASSEMBLY – Interconnecting, aileron 1 x 470.71
and rudder control

-2 -13098-000 SPRING – Tension, connecting, interconnecting 2 x x x 11
control cable (Rudder and aileron) lower
(PAC 13098-00)
-3 -487-291 SPRING – Tension, interconnecting cable, upper 2 x x x 33.2
(Rudder and aileron)
-4 U80122-018 WASHER – Station No. 6, interconnecting cable 8 x x x 2.16
pulley installation
-5 U80012-004 BUSHING – Insert, interconnecting cable pulley 4 x x x 7.45
(6 per ship 1953 model)
-6 U80421-000 PULLEY – 1 ⁄4 in. dia. 4 x x x 12.37
3
-7 U13109-000 CABLE ASSEMBLY – Rudder 2 x x 310.36
U13109-002 CABLE ASSEMBLY – Rudder, RH 1 x 358.07
U13109-003 CABLE ASSEMBLY – Rudder, LH 1 x 310.45
-8 U40071-000 FAIRLEAD – Segment ( At interconnecting cable 4 x x x 1.32
in top deck, right and left) 1 ⁄16 in. long
3
-9 U40081-000 RING – Snap, fairlead (At interconnecting cable, 2 x x x 0.49
top deck, right and left)
-10 U80012-004 BUSHING – Insert, rudder cable pulley 4 x x x x x x x 7.45
-11 U81342-042 WASHER – Spacer, rudder cable pulley 8 x x x x x x x 3.14
-12 U11200-000 PULLEY – Rudder cable, 1 ⁄8 in. fibre 4 x x x x x x x 15.2
1
-13 U11200-000 PULLEY – 1 ⁄8 in. fibre interconnecting control 2 x 15.2
1
cable (Between fuselage station No. 4 and
No. 5)
-14 U80122-018 WASHER – Interconnecting cable pulley 4 x 2.16
installation (Between fuselage station No. 4
and No. 5 top)

Date of Issue – March 1954 96
