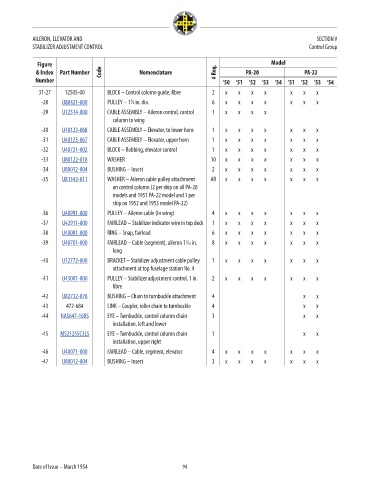

AILERON, ELEVATOR AND SECTION V
STABILIZER ADJUSTMENT CONTROL Control Group

Figure Model
& Index Part Number Code Nomenclature # Req. PA-20 PA-22
Number ‘50 ‘51 ‘52 ‘53 ‘54 ‘51 ‘52 ‘53 ‘54 Price
31-27 12505-00 BLOCK – Control column guide, fibre 2 x x x x x x x NM!
-28 U80421-000 PULLEY – 1 ⁄4 in. dia. 6 x x x x x x x 12.37
3
-29 U12514-000 CABLE ASSEMBLY – Aileron control, control 1 x x x x 543.89
column to wing
-30 U40123-068 CABLE ASSEMBLY – Elevator, to lower horn 1 x x x x x x x 142.45
-31 U40123-067 CABLE ASSEMBLY – Elevator, upper horn 1 x x x x x x x 143.78
-32 U40721-002 BLOCK – Rubbing, elevator control 1 x x x x x x x 19.3
-33 U80122-018 WASHER 10 x x x x x x x 2.16
-34 U80012-004 BUSHING – Insert 2 x x x x x x x 7.45
-35 U81342-011 WASHER – Aileron cable pulley attachment AR x x x x x x x 7.06
on control column (2 per ship on all PA-20
models and 1951 PA-22 model and 1 per
ship on 1952 and 1953 model PA-22)
-36 U40991-000 PULLEY – Aileron cable (In wing) 4 x x x x x x x 18.31
-37 U42911-000 FAIRLEAD – Stabilizer indicator wire in top deck 1 x x x x x x x 13.29
-38 U40081-000 RING – Snap, fairlead 6 x x x x x x x 0.49
-39 U40701-000 FAIRLEAD – Cable (segment), aileron 1 ⁄16 in. 8 x x x x x x x 1.3
1
long
-40 U12772-000 BRACKET – Stabilizer adjustment cable pulley 1 x x x x x x x 28.33
attachment at top fuselage station No. 4
-41 U43001-000 PULLEY – Stabilizer adjustment control, 1 in. 2 x x x x x x x 18.18
fibre
-42 U82732-076 BUSHING – Chain to turnbuckle attachment 4 x x 9.12
-43 472-684 LINK – Coupler, roller chain to turnbuckle 4 x x NM!
-44 NAS647-16RS EYE – Turnbuckle, control column chain 3 x x 15.26
installation, left and lower
-45 MS21255C3LS EYE – Turnbuckle, control column chain 1 x x 18.06
installation, upper right
-46 U40071-000 FAIRLEAD – Cable, segment, elevator 4 x x x x x x x 1.32
-47 U80012-004 BUSHING – Insert 3 x x x x x x x 7.45

Date of Issue – March 1954 94
