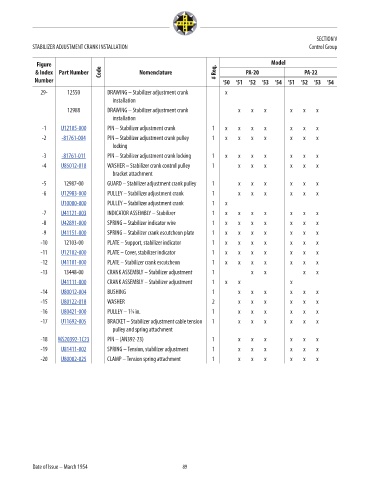

SECTION V
STABILIZER ADJUSTMENT CRANK INSTALLATION Control Group

Figure Model
& Index Part Number Code Nomenclature # Req. PA-20 PA-22
Number ‘50 ‘51 ‘52 ‘53 ‘54 ‘51 ‘52 ‘53 ‘54 Price
29- 12550 DRAWING – Stabilizer adjustment crank x NM!
installation
12988 DRAWING – Stabilizer adjustment crank x x x x x x NM!
installation
-1 U12105-000 PIN – Stabilizer adjustment crank 1 x x x x x x x 45.01
-2 -81761-004 PIN – Stabilizer adjustment crank pulley 1 x x x x x x x 12.4
locking
-3 -81761-011 PIN – Stabilizer adjustment crank locking 1 x x x x x x x 10.08
-4 U85012-018 WASHER – Stabilizer crank control pulley 1 x x x x x x 14.43
bracket attachment
-5 12987-00 GUARD – Stabilizer adjustment crank pulley 1 x x x x x x NM!
-6 U12983-000 PULLEY – Stabilizer adjustment crank 1 x x x x x x 69.18
U10080-000 PULLEY – Stabilizer adjustment crank 1 x 159.44
-7 U41121-003 INDICATOR ASSEMBLY – Stabilizer 1 x x x x x x x 38.97
-8 U42891-000 SPRING – Stabilizer indicator wire 1 x x x x x x x 7.53
-9 U41151-000 SPRING – Stabilizer crank escutcheon plate 1 x x x x x x x 9.64
-10 12103-00 PLATE – Support, stabilizer indicator 1 x x x x x x x NM!
-11 U12102-000 PLATE – Cover, stabilizer indicator 1 x x x x x x x 162.66
-12 U41101-000 PLATE – Stabilizer crank escutcheon 1 x x x x x x x 35.56
-13 13448-00 CRANK ASSEMBLY – Stabilizer adjustment 1 x x x x NM!
U41111-000 CRANK ASSEMBLY – Stabilizer adjustment 1 x x x 126.81
-14 U80012-004 BUSHING 1 x x x x x x 7.45
-15 U80122-018 WASHER 2 x x x x x x 2.16
-16 U80421-000 PULLEY – 1 ⁄4 in. 1 x x x x x x 12.37
3
-17 U11692-005 BRACKET – Stabilizer adjustment cable tension 1 x x x x x x 18.39
pulley and spring attachment
-18 MS20392-1C23 PIN – (AN392-23) 1 x x x x x x 0.6
-19 U81411-002 SPRING – Tension, stabilizer adjustment 1 x x x x x x 40.44
-20 U80002-025 CLAMP – Tension spring attachment 1 x x x x x x 24.81

Date of Issue – March 1954 89
