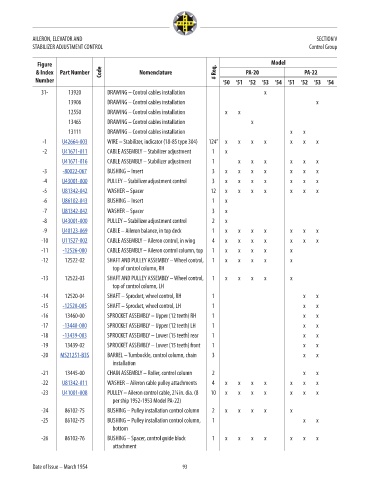

AILERON, ELEVATOR AND SECTION V
STABILIZER ADJUSTMENT CONTROL Control Group

Figure Model
& Index Part Number Code Nomenclature # Req. PA-20 PA-22
Number ‘50 ‘51 ‘52 ‘53 ‘54 ‘51 ‘52 ‘53 ‘54 Price
31- 13920 DRAWING – Control cables installation x NM!
13906 DRAWING – Control cables installation x NM!
12550 DRAWING – Control cables installation x x NM!
13465 DRAWING – Control cables installation x NM!
13111 DRAWING – Control cables installation x x NM!
-1 U42664-003 WIRE – Stabilizer, indicator (18-8S type 304) 124” x x x x x x x 26.19
-2 U41671-011 CABLE ASSEMBLY – Stabilizer adjustment 1 x 333.26
U41671-016 CABLE ASSEMBLY – Stabilizer adjustment 1 x x x x x x 343.11
-3 -80022-067 BUSHING – Insert 3 x x x x x x x 10.64
-4 U43001-000 PULLEY – Stabilizer adjustment control 3 x x x x x x x 18.18
-5 U81342-042 WASHER – Spacer 12 x x x x x x x 3.14
-6 U86102-043 BUSHING – Insert 1 x 10.85

-7 U81342-042 WASHER – Spacer 3 x 3.14
-8 U43001-000 PULLEY – Stabilizer adjustment control 2 x 18.18
-9 U40123-069 CABLE – Aileron balance, in top deck 1 x x x x x x x 162.74
-10 U11527-002 CABLE ASSEMBLY – Aileron control, in wing 4 x x x x x x x 157.82
-11 -12526-000 CABLE ASSEMBLY – Aileron control column, top 1 x x x x x 263.43
-12 12522-02 SHAFT AND PULLEY ASSEMBLY – Wheel control, 1 x x x x x NM!
top of control column, RH
-13 12522-03 SHAFT AND PULLEY ASSEMBLY – Wheel control, 1 x x x x x NM!
top of control column, LH
-14 12520-04 SHAFT – Sprocket, wheel control, RH 1 x x NM!
-15 -12520-005 SHAFT – Sprocket, wheel control, LH 1 x x 90.44
-16 13460-00 SPROCKET ASSEMBLY – Upper (12 teeth) RH 1 x x NM!
-17 -13440-000 SPROCKET ASSEMBLY – Upper (12 teeth) LH 1 x x 87.75
-18 -13439-003 SPROCKET ASSEMBLY – Lower (15 teeth) rear 1 x x 123.64
-19 13439-02 SPROCKET ASSEMBLY – Lower (15 teeth) front 1 x x NM!
-20 MS21251-B3S BARREL – Turnbuckle, control column, chain 3 x x 11
installation
-21 13445-00 CHAIN ASSEMBLY – Roller, control column 2 x x NM!
-22 U81342-011 WASHER – Aileron cable pulley attachments 4 x x x x x x x 7.06
-23 U41001-008 PULLEY – Aileron control cable, 2 ⁄4 in. dia. (8 10 x x x x x x x 63.56
3
per ship 1952-1953 Model PA-22)
-24 86102-75 BUSHING – Pulley installation control column 2 x x x x x NM!
-25 86102-75 BUSHING – Pulley installation control column, 1 x x NM!
bottom
-26 86102-76 BUSHING – Spacer, control guide block 1 x x x x x x x NM!
attachment

Date of Issue – March 1954 93
