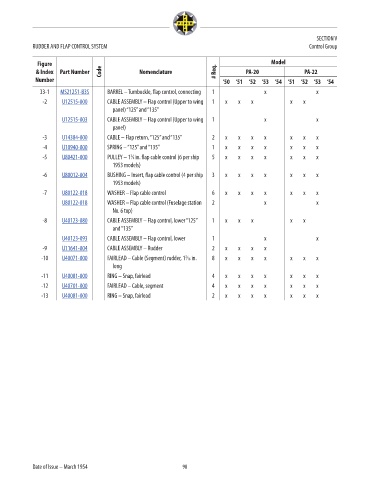

SECTION V
RUDDER AND FLAP CONTROL SYSTEM Control Group

Figure Model
& Index Part Number Code Nomenclature # Req. PA-20 PA-22
Number ‘50 ‘51 ‘52 ‘53 ‘54 ‘51 ‘52 ‘53 ‘54 Price
33-1 MS21251-B3S BARREL – Turnbuckle, flap control, connecting 1 x x 11
-2 U12515-000 CABLE ASSEMBLY – Flap control (Upper to wing 1 x x x x x 156.6
panel) “125” and “135”
U12515-003 CABLE ASSEMBLY – Flap control (Upper to wing 1 x x 202.5
panel)
-3 U14384-000 CABLE – Flap return, “125” and “135” 2 x x x x x x x 27.34
-4 U10940-000 SPRING – “125” and “135” 1 x x x x x x x 33.57
-5 U80421-000 PULLEY – 1 ⁄4 in. flap cable control (6 per ship 5 x x x x x x x 12.37
3
1953 models)
-6 U80012-004 BUSHING – Insert, flap cable control (4 per ship 3 x x x x x x x 7.45
1953 models)
-7 U80122-018 WASHER – Flap cable control 6 x x x x x x x 2.16
U80122-018 WASHER – Flap cable control (Fuselage station 2 x x 2.16
No. 6 top)
-8 U40123-080 CABLE ASSEMBLY – Flap control, lower “125” 1 x x x x x 151.82
and “135”
U40123-093 CABLE ASSEMBLY – Flap control, lower 1 x x 144.92
-9 U11641-004 CABLE ASSEMBLY – Rudder 2 x x x x 136.24
-10 U40071-000 FAIRLEAD – Cable (Segment) rudder, 1 ⁄16 in. 8 x x x x x x x 1.32
3
long
-11 U40081-000 RING – Snap, fairlead 4 x x x x x x x 0.49
-12 U40701-000 FAIRLEAD – Cable, segment 4 x x x x x x x 1.3
-13 U40081-000 RING – Snap, fairlead 2 x x x x x x x 0.49

Date of Issue – March 1954 98
