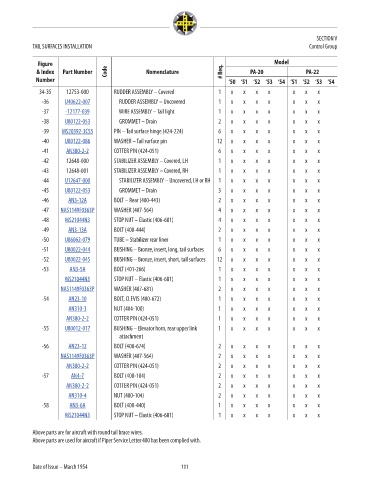

SECTION V
TAIL SURFACES INSTALLATION Control Group

Figure Model
& Index Part Number Code Nomenclature # Req. PA-20 PA-22
Number ‘50 ‘51 ‘52 ‘53 ‘54 ‘51 ‘52 ‘53 ‘54 Price
34-35 12753-000 RUDDER ASSEMBLY – Covered 1 x x x x x x x NM!
-36 U40622-007 RUDDER ASSEMBLY – Uncovered 1 x x x x x x x 918.25
-37 -12177-039 WIRE ASSEMBLY – Tail light 1 x x x x x x x 13.87
-38 U80122-053 GROMMET – Drain 2 x x x x x x x 4.09
-39 MS20392-3C55 PIN – Tail surface hinge (424-224) 6 x x x x x x x 1.08
-40 U80122-086 WASHER – Tail surface pin 12 x x x x x x x 2.46
-41 AN380-2-2 COTTER PIN (424-051) 6 x x x x x x x 0.04
-42 12648-000 STABILIZER ASSEMBLY – Covered, LH 1 x x x x x x x NM!
-43 12648-001 STABILIZER ASSEMBLY – Covered, RH 1 x x x x x x x NM!
-44 U12647-000 STABILIZER ASSEMBLY – Uncovered, LH or RH 1 x x x x x x x 929.38
-45 U80122-053 GROMMET – Drain 3 x x x x x x x 4.09
-46 AN3-12A BOLT – Rear (400-443) 2 x x x x x x x 0.16
-47 NAS1149F0363P WASHER (407-564) 4 x x x x x x x 0.04
-48 MS21044N3 STOP NUT – Elastic (406-681) 4 x x x x x x x 0.24
-49 AN3-13A BOLT (400-444) 2 x x x x x x x 0.3

-50 U86062-079 TUBE – Stabilizer rear liner 1 x x x x x x x 89.95
-51 U80022-044 BUSHING – Bronze, insert, long, tail surfaces 6 x x x x x x x 1.26
-52 U80022-045 BUSHING – Bronze, insert, short, tail surfaces 12 x x x x x x x 1.6
-53 AN3-5A BOLT (401-266) 1 x x x x x x x 0.16
MS21044N3 STOP NUT – Elastic (406-681) 1 x x x x x x x 0.24
NAS1149F0363P WASHER (407-681) 2 x x x x x x x 0.04
-54 AN23-10 BOLT, CLEVIS (400-672) 1 x x x x x x x 1.82
AN310-3 NUT (404-100) 1 x x x x x x x 1.5
AN380-2-2 COTTER PIN (424-051) 1 x x x x x x x 0.04
-55 U80012-017 BUSHING – Elevator horn, rear upper link 1 x x x x x x x 12.71
attachment
-56 AN23-12 BOLT (400-674) 2 x x x x x x x 1.3

NAS1149F0363P WASHER (407-564) 2 x x x x x x x 0.04
AN380-2-2 COTTER PIN (424-051) 2 x x x x x x x 0.04
-57 AN4-7 BOLT (400-104) 2 x x x x x x x 0.58
AN380-2-2 COTTER PIN (424-051) 2 x x x x x x x 0.04
AN310-4 NUT (400-104) 2 x x x x x x x 1.6
-58 AN3-6A BOLT (400-440) 1 x x x x x x x 0.16
MS21044N3 STOP NUT – Elastic (406-681) 1 x x x x x x x 0.24

Above parts are for aircraft with round tail brace wires.
Above parts are used for aircraft if Piper Service Letter 400 has been complied with.

Date of Issue – March 1954 101
