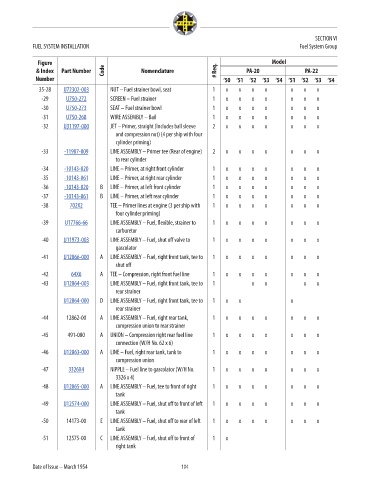

SECTION VI
FUEL SYSTEM INSTALLATION Fuel System Group

Figure Model
& Index Part Number Code Nomenclature # Req. PA-20 PA-22
Number ‘50 ‘51 ‘52 ‘53 ‘54 ‘51 ‘52 ‘53 ‘54 Price

35-28 U72302-003 NUT – Fuel strainer bowl, seat 1 x x x x x x x 21.34
-29 U750-272 SCREEN – Fuel strainer 1 x x x x x x x 2.89
-30 U750-273 SEAT – Fuel strainer bowl 1 x x x x x x x 18.9
-31 U750-268 WIRE ASSEMBLY – Bail 1 x x x x x x x 37.85
-32 U31197-000 JET – Primer, straight (Includes ball sleeve 2 x x x x x x x 59.87
and compression nut) (4 per ship with four
cylinder priming)
-33 -11987-009 LINE ASSEMBLY – Primer tee (Rear of engine) 2 x x x x x x x 25.8
to rear cylinder
-34 -10143-020 LINE – Primer, at right front cylinder 1 x x x x x x x 35.99
-35 -10143-061 LINE – Primer, at right rear cylinder 1 x x x x x x x 31.88
-36 -10143-020 B LINE – Primer, at left front cylinder 1 x x x x x x x 35.99
-37 -10143-061 B LINE – Primer, at left rear cylinder 1 x x x x x x x 31.88
-38 702X2 TEE – Primer lines at engine (3 per ship with 1 x x x x x x x 39.12
four cylinder priming)
-39 U17766-66 LINE ASSEMBLY – Fuel, flexible, strainer to 1 x x x x x x x 182.91
carburetor
-40 U11973-003 LINE ASSEMBLY – Fuel, shut off valve to 1 x x x x x x x 127.6
gascolator
-41 U12866-000 A LINE ASSEMBLY – Fuel, right front tank, tee to 1 x x x x x x x 134.49
shut off
-42 64X6 A TEE – Compression, right front fuel line 1 x x x x x x x 3.4
-43 U12864-003 LINE ASSEMBLY – Fuel, right front tank, tee to 1 x x x x 169.4
rear strainer
U12864-000 D LINE ASSEMBLY – Fuel, right front tank, tee to 1 x x x 141.4
rear strainer
-44 12862-00 A LINE ASSEMBLY – Fuel, right rear tank, 1 x x x x x x x NM!
compression union to rear strainer
-45 491-080 A UNION – Compression right rear fuel line 1 x x x x x x x NM!
connection (W/H No. 62 x 6)
-46 U12863-000 A LINE – Fuel, right rear tank, tank to 1 x x x x x x x 69.1
compression union
-47 3326X4 NIPPLE – Fuel line to gascolator (W/H No. 1 x x x x x x x 0.97
3326 x 4)
-48 U12865-000 A LINE ASSEMBLY – Fuel, tee to front of right 1 x x x x x x x 55.34
tank
-49 U12574-000 LINE ASSEMBLY – Fuel, shut off to front of left 1 x x x x x x x 127.1
tank
-50 14173-00 E LINE ASSEMBLY – Fuel, shut off to rear of left 1 x x x x x x x NM!
tank
-51 12575-00 C LINE ASSEMBLY – Fuel, shut off to front of 1 x NM!
right tank

Date of Issue – March 1954 104
