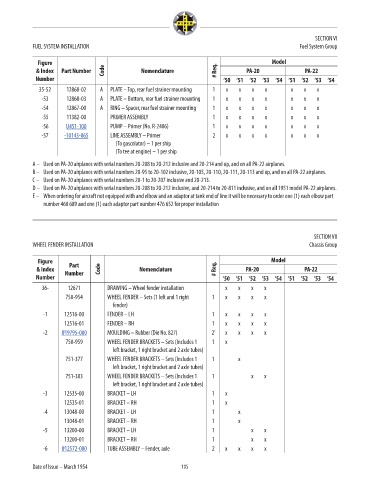

Page 133 - Piper PA-20 Interactive Digital Parts Catalog

SECTION VI
FUEL SYSTEM INSTALLATION Fuel System Group

Figure Model
& Index Part Number Code Nomenclature # Req. PA-20 PA-22
Number ‘50 ‘51 ‘52 ‘53 ‘54 ‘51 ‘52 ‘53 ‘54 Price

35-52 12868-02 A PLATE – Top, rear fuel strainer mounting 1 x x x x x x x NM!
-53 12868-03 A PLATE – Bottom, rear fuel strainer mounting 1 x x x x x x x NM!
-54 12867-00 A RING – Spacer, rear fuel strainer mounting 1 x x x x x x x NM!
-55 11382-00 PRIMER ASSEMBLY 1 x x x x x x x NM!
-56 U451-100 PUMP – Primer (No. R-2406) 1 x x x x x x x 419.22
-57 -10143-065 LINE ASSEMBLY – Primer 2 x x x x x x x 100.22
(To gascolator) – 1 per ship
(To tee at engine) – 1 per ship

A – Used on PA-20 airplanes with serial numbers 20-208 to 20-212 inclusive and 20-214 and up, and on all PA-22 airplanes.
B – Used on PA-20 airplanes with serial numbers 20-95 to 20-102 inclusive, 20-105, 20-110, 20-111, 20-113 and up, and on all PA-22 airplanes.
C – Used on PA-20 airplanes with serial numbers 20-1 to 20-207 inclusive and 20-213.
D – Used on PA-20 airplanes with serial numbers 20-208 to 20-212 inclusive, and 20-214 to 20-811 inclusive, and on all 1951 model PA-22 airplanes.
E – When ordering for aircraft not equipped with and elbow and an adaptor at tank end of line it will be necessary to order one (1) each elbow part
number 460 689 and one (1) each adaptor part number 476 652 for proper installation

SECTION VII
WHEEL FENDER INSTALLATION Chassis Group

Figure Part Model
& Index Code Nomenclature # Req. PA-20 PA-22
Number Number ‘50 ‘51 ‘52 ‘53 ‘54 ‘51 ‘52 ‘53 ‘54 Price
36- 12671 DRAWING – Wheel fender installation x x x x NM!
750-954 WHEEL FENDER – Sets (1 left and 1 right 1 x x x x NM!
fender)
-1 12516-00 FENDER – LH 1 x x x x NM!
12516-01 FENDER – RH 1 x x x x NM!
-2 U19795-000 MOULDING – Rubber (Die No. 827) 2’ x x x x 27.08
750-959 WHEEL FENDER BRACKETS – Sets (Includes 1 1 x NM!
left bracket, 1 right bracket and 2 axle tubes)
751-377 WHEEL FENDER BRACKETS – Sets (Includes 1 1 x NM!
left bracket, 1 right bracket and 2 axle tubes)
751-383 WHEEL FENDER BRACKETS – Sets (Includes 1 1 x x NM!
left bracket, 1 right bracket and 2 axle tubes)
-3 12535-00 BRACKET – LH 1 x NM!
12535-01 BRACKET – RH 1 x NM!
-4 13048-00 BRACKET – LH 1 x NM!
13048-01 BRACKET – RH 1 x NM!
-5 13200-00 BRACKET – LH 1 x x NM!
13200-01 BRACKET – RH 1 x x NM!
-6 U12572-000 TUBE ASSEMBLY – Fender, axle 2 x x x x 264.82

Date of Issue – March 1954 105
