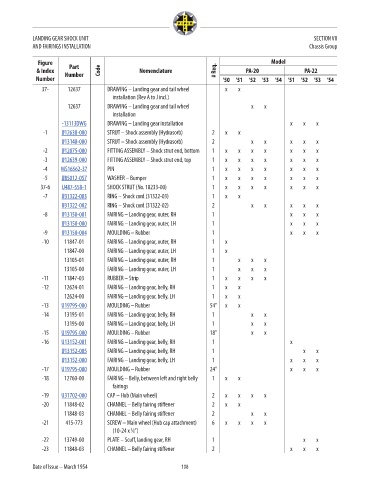

LANDING GEAR SHOCK UNIT SECTION VII
AND FAIRINGS INSTALLATION Chassis Group

Figure Model
& Index Part Code Nomenclature # Req. PA-20 PA-22
Number Number ‘50 ‘51 ‘52 ‘53 ‘54 ‘51 ‘52 ‘53 ‘54 Price

37- 12637 DRAWING – Landing gear and tail wheel x x NM!
installation (Rev A to J incl.)
12637 DRAWING – Landing gear and tail wheel x x NM!
installation
-13113DWG DRAWING – Landing gear installation x x x 65.97
-1 U12638-000 STRUT – Shock assembly (Hydrasorb) 2 x x 1092.67
U13148-000 STRUT – Shock assembly (Hydrasorb) 2 x x x x x 1173.65
-2 U12875-000 FITTING ASSEMBLY – Shock strut end, bottom 1 x x x x x x x 235.21
-3 U12639-000 FITTING ASSEMBLY – Shock strut end, top 1 x x x x x x x 380.49
-4 MS16562-37 PIN 1 x x x x x x x 0.62
-5 U85012-057 WASHER – Bumper 1 x x x x x x x 5.68
37-6 U487-558-1 SHOCK STRUT (No. 18233-00) 1 x x x x x x x 482.18
-7 U31322-003 RING – Shock cord (31322-03) 1 x x 42.48
U31322-002 RING – Shock cord (31322-02) 2 x x x x x 46.25
-8 U13150-001 FAIRING – Landing gear, outer, RH 1 x x x 265.56
U13150-000 FAIRING – Landing gear, outer, LH 1 x x x 265.56
-9 U13150-004 MOULDING – Rubber 1 x x x 29.28
-10 11847-01 FAIRING – Landing gear, outer, RH 1 x NM!
11847-00 FAIRING – Landing gear, outer, LH 1 x NM!
13105-01 FAIRING – Landing gear, outer, RH 1 x x x NM!
13105-00 FAIRING – Landing gear, outer, LH 1 x x x NM!
-11 11847-03 RUBBER – Strip 1 x x x x NM!
-12 12624-01 FAIRING – Landing gear, belly, RH 1 x x NM!
12624-00 FAIRING – Landing gear, belly, LH 1 x x NM!
-13 U19795-000 MOULDING – Rubber 54” x x 27.08
-14 13195-01 FAIRING – Landing gear, belly, RH 1 x x NM!
13195-00 FAIRING – Landing gear, belly, LH 1 x x NM!
-15 U19795-000 MOULDING – Rubber 18” x x 27.08
-16 U13152-001 FAIRING – Landing gear, belly, RH 1 x 109.9
U13152-005 FAIRING – Landing gear, belly, RH 1 x x 116.42
U13152-000 FAIRING – Landing gear, belly, LH 1 x x x 137.78
-17 U19795-000 MOULDING – Rubber 24” x x x 27.08
-18 12760-00 FAIRING – Belly, between left and right belly 1 x x NM!
fairings
-19 U31702-000 CAP – Hub (Main wheel) 2 x x x x 41.8
-20 11848-02 CHANNEL – Belly fairing stiffener 2 x x NM!
11848-03 CHANNEL – Belly fairing stiffener 2 x x NM!
-21 415-773 SCREW – Main wheel (Hub cap attachment) 6 x x x x NM!
(10-24 x ⁄8”)
3
-22 13749-00 PLATE – Scuff, landing gear, RH 1 x x NM!
-23 11848-03 CHANNEL – Belly fairing stiffener 2 x x x NM!

Date of Issue – March 1954 108
