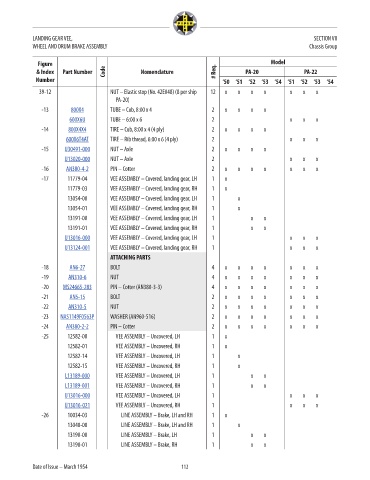

Page 140 - Piper PA-20 Interactive Digital Parts Catalog

LANDING GEAR VEE, SECTION VII
WHEEL AND DRUM BRAKE ASSEMBLY Chassis Group

Figure Model
& Index Part Number Code Nomenclature # Req. PA-20 PA-22
Number ‘50 ‘51 ‘52 ‘53 ‘54 ‘51 ‘52 ‘53 ‘54 Price
39-12 NUT – Elastic stop (No. 42E048) (8 per ship 12 x x x x x x x x
PA-20)
-13 800X4 TUBE – Cub, 8:00 x 4 2 x x x x 272.42
600X6U TUBE – 6:00 x 6 2 x x x 91.73
-14 800X4X4 TIRE – Cub, 8:00 x 4 (4 ply) 2 x x x x 593.12
600X6T4AT TIRE – Rib thread, 6:00 x 6 (4 ply) 2 x x x 110.46
-15 U30491-000 NUT – Axle 2 x x x x 77.13
U13020-000 NUT – Axle 2 x x x 82.21
-16 AN380-4-2 PIN – Cotter 2 x x x x x x x 0.32
-17 11779-04 VEE ASSEMBLY – Covered, landing gear, LH 1 x NM!
11779-03 VEE ASSEMBLY – Covered, landing gear, RH 1 x NM!
13054-00 VEE ASSEMBLY – Covered, landing gear, LH 1 x NM!
13054-01 VEE ASSEMBLY – Covered, landing gear, RH 1 x NM!
13191-00 VEE ASSEMBLY – Covered, landing gear, LH 1 x x NM!
13191-01 VEE ASSEMBLY – Covered, landing gear, RH 1 x x NM!
U13016-000 VEE ASSEMBLY – Covered, landing gear, LH 1 x x x 1970.2
U13124-001 VEE ASSEMBLY – Covered, landing gear, RH 1 x x x 2033.24
ATTACHING PARTS x
-18 AN6-27 BOLT 4 x x x x x x x 1.46
-19 AN310-6 NUT 4 x x x x x x x 1.8
-20 MS24665-283 PIN – Cotter (AN380-3-3) 4 x x x x x x x 0.04
-21 AN5-15 BOLT 2 x x x x x x x 0.96
-22 AN310-5 NUT 2 x x x x x x x 2
-23 NAS1149F0563P WASHER (AN960-516) 2 x x x x x x x 0.08
-24 AN380-2-2 PIN – Cotter 2 x x x x x x x 0.04
-25 12582-00 VEE ASSEMBLY – Uncovered, LH 1 x NM!
12582-01 VEE ASSEMBLY – Uncovered, RH 1 x NM!

12582-14 VEE ASSEMBLY – Uncovered, LH 1 x NM!
12582-15 VEE ASSEMBLY – Uncovered, RH 1 x NM!
L13189-000 VEE ASSEMBLY – Uncovered, LH 1 x x 1923.45
L13189-001 VEE ASSEMBLY – Uncovered, RH 1 x x 1923.45
U13016-000 VEE ASSEMBLY – Uncovered, LH 1 x x x 1970.2
U13016-021 VEE ASSEMBLY – Uncovered, RH 1 x x x 1970.2
-26 10034-03 LINE ASSEMBLY – Brake, LH and RH 1 x NM!
13040-00 LINE ASSEMBLY – Brake, LH and RH 1 x NM!
13190-00 LINE ASSEMBLY – Brake, LH 1 x x NM!
13190-01 LINE ASSEMBLY – Brake, RH 1 x x NM!

Date of Issue – March 1954 112
