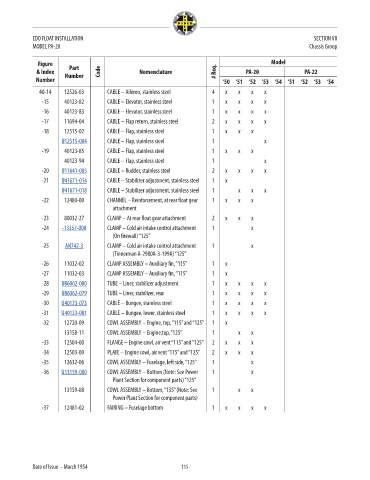

EDO FLOAT INSTALLATION SECTION VII
MODEL PA-20 Chassis Group

Figure Model
& Index Part Code Nomenclature # Req. PA-20 PA-22
Number Number ‘50 ‘51 ‘52 ‘53 ‘54 ‘51 ‘52 ‘53 ‘54 Price
40-14 12526-03 CABLE – Aileron, stainless steel 4 x x x x NM!
-15 40123-82 CABLE – Elevator, stainless steel 1 x x x x NM!
-16 40123-83 CABLE – Elevator, stainless steel 1 x x x x NM!
-17 11694-04 CABLE – Flap return, stainless steel 2 x x x x NM!
-18 12515-02 CABLE – Flap, stainless steel 1 x x x NM!
U12515-004 CABLE – Flap, stainless steel 1 x 220.59
-19 40123-85 CABLE – Flap, stainless steel 1 x x x NM!
40123-94 CABLE – Flap, stainless steel 1 x NM!
-20 U11641-005 CABLE – Rudder, stainless steel 2 x x x x 133.84
-21 U41671-014 CABLE – Stabilizer adjustment, stainless steel 1 x 309.96
U41671-018 CABLE – Stabilizer adjustment, stainless steel 1 x x x 297.52
-22 12480-00 CHANNEL – Reinforcement, at rear float gear 1 x x x NM!
attachment
-23 80032-27 CLAMP – At rear float gear attachment 2 x x x NM!
-24 -13357-000 CLAMP – Cold air intake control attachment 1 x 28.19
(On firewall) “125”
-25 AN742-3 CLAMP – Cold air intake control attachment 1 x 0.72
(Tinnerman A-2980A-3-199A) “125”
-26 11032-02 CLAMP ASSEMBLY – Auxiliary fin, “115” 1 x NM!
-27 11032-03 CLAMP ASSEMBLY – Auxiliary fin, “115” 1 x NM!
-28 U86062-080 TUBE – Liner, stabilizer adjustment 1 x x x x 129.57
-29 U86062-079 TUBE – Liner, stabilizer, rear 1 x x x x 89.95
-30 U40123-073 CABLE – Bungee, stainless steel 1 x x x x 57.73
-31 U40123-081 CABLE – Bungee, lower, stainless steel 1 x x x x 57.73
-32 12720-09 COWL ASSEMBLY – Engine, top, “115” and “125” 1 x NM!
13158-11 COWL ASSEMBLY – Engine,top, “125” 1 x x NM!
-33 12504-00 FLANGE – Engine cowl, air vent “115” and “125” 2 x x x NM!
-34 12503-00 PLATE – Engine cowl, air vent “115” and “125” 2 x x x NM!
-35 12632-06 COWL ASSEMBLY – Fuselage, left side, “125” 1 x NM!
-36 U13159-000 COWL ASSEMBLY – Bottom (Note: See Power 1 x 1411.82
Plant Section for component parts) “125”
13159-08 COWL ASSEMBLY – Bottom, “135” (Note: See 1 x x NM!
Power Plant Section for component parts)
-37 12481-02 FAIRING – Fuselage bottom 1 x x x x NM!

Date of Issue – March 1954 115
