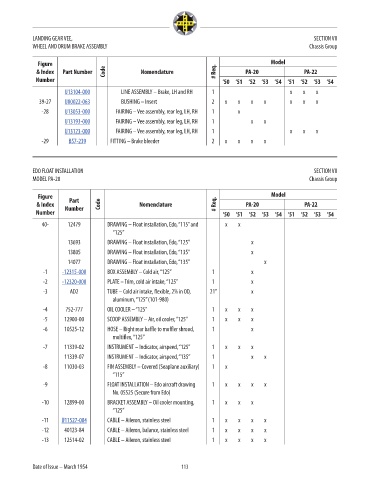

Page 141 - Piper PA-20 Interactive Digital Parts Catalog

LANDING GEAR VEE, SECTION VII
WHEEL AND DRUM BRAKE ASSEMBLY Chassis Group

Figure Model
& Index Part Number Code Nomenclature # Req. PA-20 PA-22
Number ‘50 ‘51 ‘52 ‘53 ‘54 ‘51 ‘52 ‘53 ‘54 Price
U13104-000 LINE ASSEMBLY – Brake, LH and RH 1 x x x 58.26
39-27 U80022-063 BUSHING – Insert 2 x x x x x x x 13.19
-28 U13053-000 FAIRING – Vee assembly, rear leg, LH, RH 1 x 71.65
U13193-000 FAIRING – Vee assembly, rear leg, LH, RH 1 x x 43.42
U13123-000 FAIRING – Vee assembly, rear leg, LH, RH 1 x x x 51.08
-29 B57-239 FITTING – Brake bleeder 2 x x x x 121.13

EDO FLOAT INSTALLATION SECTION VII
MODEL PA-20 Chassis Group

Figure Part Model
& Index Code Nomenclature # Req. PA-20 PA-22
Number Number ‘50 ‘51 ‘52 ‘53 ‘54 ‘51 ‘52 ‘53 ‘54 Price
40- 12479 DRAWING – Float installation, Edo, “115” and x x NM!
“125”
13693 DRAWING – Float installation, Edo, “125” x NM!
13805 DRAWING – Float installation, Edo, “135” x NM!
14077 DRAWING – Float installation, Edo, “135” x NM!
-1 -12315-000 BOX ASSEMBLY – Cold air, “125” 1 x 391.95
-2 -12320-000 PLATE – Trim, cold air intake, “125” 1 x 9.07
-3 AD2 TUBE – Cold air intake, flexible, 2 ⁄8 in OD, 21” x NM!
1
aluminum, “125” (101-980)
-4 752-777 OIL COOLER – “125” 1 x x x NM!
-5 12900-00 SCOOP ASSEMBLY – Air, oil cooler, “125” 1 x x x NM!
-6 10525-12 HOSE – Right rear baffle to muffler shroud, 1 x NM!
multiflex, “125”
-7 11339-02 INSTRUMENT – Indicator, airspeed, “125” 1 x x x NM!
11339-07 INSTRUMENT – Indicator, airspeed, “135” 1 x x NM!
-8 11030-03 FIN ASSEMBLY – Covered (Seaplane auxiliary) 1 x NM!
“115”
-9 FLOAT INSTALLATION – Edo aircraft drawing 1 x x x x x
No. 05525 (Secure from Edo)
-10 12899-00 BRACKET ASSEMBLY – Oil cooler mounting, 1 x x x NM!
“125”
-11 U11527-004 CABLE – Aileron, stainless steel 1 x x x x 137.25
-12 40123-84 CABLE – Aileron, balance, stainless steel 1 x x x x NM!
-13 12514-02 CABLE – Aileron, stainless steel 1 x x x x NM!

Date of Issue – March 1954 113
