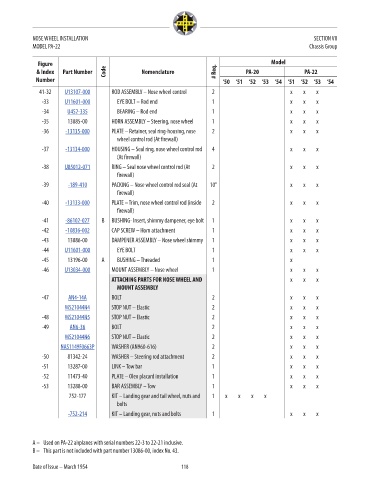

NOSE WHEEL INSTALLATION SECTION VII
MODEL PA-22 Chassis Group

Figure Model
& Index Part Number Code Nomenclature # Req. PA-20 PA-22
Number ‘50 ‘51 ‘52 ‘53 ‘54 ‘51 ‘52 ‘53 ‘54 Price
41-32 U13107-000 ROD ASSEMBLY – Nose wheel control 2 x x x 376.21
-33 U11601-000 EYE BOLT – Rod end 1 x x x 56.63
-34 U452-335 BEARING – Rod end 1 x x x 46.92
-35 13085-00 HORN ASSEMBLY – Steering, nose wheel 1 x x x NM!
-36 -13135-000 PLATE – Retainer, seal ring-housing, nose 2 x x x 25.63
wheel control rod (At firewall)
-37 -13134-000 HOUSING – Seal ring, nose wheel control rod 4 x x x 41.59
(At firewall)
-38 U85012-071 RING – Seal nose wheel control rod (At 2 x x x 11.14
firewall)
-39 -189-410 PACKING – Nose wheel control rod seal (At 10” x x x 9.75
firewall)
-40 -13133-000 PLATE – Trim, nose wheel control rod (inside 2 x x x 45.1
firewall)
-41 -86102-027 B BUSHING- Insert, shimmy dampener, eye bolt 1 x x x 4.5
-42 -10836-002 CAP SCREW – Horn attachment 1 x x x 1.84
-43 13086-00 DAMPENER ASSEMBLY – Nose wheel shimmy 1 x x x NM!
-44 U11601-000 EYE BOLT 1 x x x 56.63
-45 13196-00 A BUSHING – Threaded 1 x NM!
-46 U13034-000 MOUNT ASSEMBLY – Nose wheel 1 x x x 2154.75
ATTACHING PARTS FOR NOSE WHEEL AND x x x x
MOUNT ASSEMBLY
-47 AN4-14A BOLT 2 x x x 0.3
MS21044N4 STOP NUT – Elastic 2 x x x 0.3

-48 MS21044N5 STOP NUT – Elastic 2 x x x 0.4
-49 AN6-36 BOLT 2 x x x 3.38
MS21044N6 STOP NUT – Elastic 2 x x x 0.58
NAS1149F0663P WASHER (AN960-616) 2 x x x 0.11
-50 81342-24 WASHER – Steering rod attachment 2 x x x NM!
-51 13287-00 LINK – Tow bar 1 x x x NM!
-52 11473-40 PLATE – Oleo placard installation 1 x x x NM!
-53 13288-00 BAR ASSEMBLY – Tow 1 x x x NM!
752-177 KIT – Landing gear and tail wheel, nuts and 1 x x x x NM!
bolts
-752-214 KIT – Landing gear, nuts and bolts 1 x x x 138.14

A – Used on PA-22 airplanes with serial numbers 22-3 to 22-21 inclusive.
B – This part is not included with part number 13086-00, index No. 43.

Date of Issue – March 1954 118
