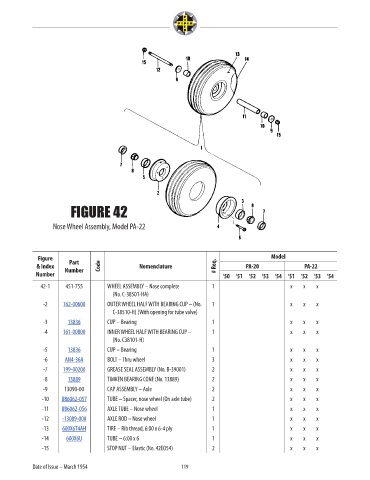

FIGURE 42

Nose Wheel Assembly, Model PA-22

Figure Part Model
& Index Code Nomenclature # Req. PA-20 PA-22
Number Number ‘50 ‘51 ‘52 ‘53 ‘54 ‘51 ‘52 ‘53 ‘54 Price
42-1 451-755 WHEEL ASSEMBLY – Nose complete 1 x x x NM!
(No. C-38501-HA)
-2 162-00600 OUTER WHEEL HALF WITH BEARING CUP – (No. 1 x x x 1036.61
C-38510-H) (With opening for tube valve)
-3 13836 CUP – Bearing 1 x x x 36.98
-4 161-00800 INNER WHEEL HALF WITH BEARING CUP – 1 x x x 1129.71
(No. C38101-H)
-5 13836 CUP – Bearing 1 x x x 36.98
-6 AN4-36A BOLT – Thru wheel 3 x x x 0.88
-7 199-00200 GREASE SEAL ASSEMBLY (No. B-39001) 2 x x x 56.55
-8 13889 TIMKEN BEARING CONE (No. 13889) 2 x x x 77.98
-9 13090-00 CAP ASSEMBLY – Axle 2 x x x NM!
-10 U86062-057 TUBE – Spacer, nose wheel (On axle tube) 2 x x x 33.34

-11 U86062-056 AXLE TUBE – Nose wheel 1 x x x 111.49
-12 -13089-000 AXLE ROD – Nose wheel 1 x x x 114.33
-13 600X6T4AH TIRE – Rib thread, 6:00 x 6-4 ply 1 x x x 117.26
-14 600X6U TUBE – 6:00 x 6 1 x x x 91.73
-15 STOP NUT – Elastic (No. 42EO54) 2 x x x x

Date of Issue – March 1954 119
