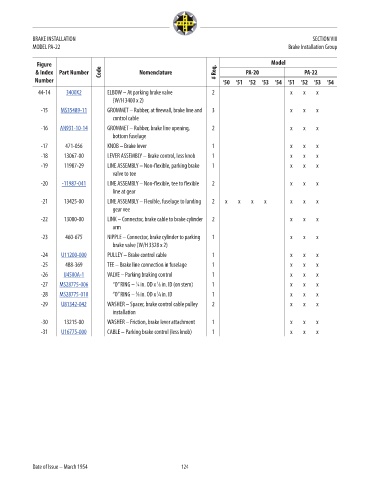

BRAKE INSTALLATION SECTION VIII
MODEL PA-22 Brake Installation Group

Figure Model
& Index Part Number Code Nomenclature # Req. PA-20 PA-22
Number ‘50 ‘51 ‘52 ‘53 ‘54 ‘51 ‘52 ‘53 ‘54 Price
44-14 3400X2 ELBOW – At parking brake valve 2 x x x 2.93
(W/H 3400 x 2)
-15 MS35489-11 GROMMET – Rubber, at firewall, brake line and 3 x x x 0.6
control cable
-16 AN931-10-14 GROMMET – Rubber, brake line opening, 2 x x x 2
bottom fuselage
-17 471-056 KNOB – Brake lever 1 x x x NM!
-18 13067-00 LEVER ASSEMBLY – Brake control, less knob 1 x x x NM!
-19 11987-29 LINE ASSEMBLY – Non-flexible, parking brake 1 x x x NM!
valve to tee
-20 -11987-041 LINE ASSEMBLY – Non-flexible, tee to flexible 2 x x x 47.2
line at gear
-21 13425-00 LINE ASSEMBLY – Flexible, fuselage to landing 2 x x x x x x x NM!
gear vee
-22 13080-00 LINK – Connector, brake cable to brake cylinder 2 x x x NM!
arm
-23 460-675 NIPPLE – Connector, brake cylinder to parking 1 x x x NM!
brake valve (W/H 3328 x 2)
-24 U11200-000 PULLEY – Brake control cable 1 x x x 15.2
-25 488-369 TEE – Brake line connection in fuselage 1 x x x NM!
-26 U4500A-1 VALVE – Parking braking control 1 x x x 451.41
-27 MS28775-006 “O” RING – ⁄4 in. OD x ⁄8 in. ID (on stem) 1 x x x 0.6
1
1
1
3
-28 MS28775-010 “O” RING – ⁄8 in. OD x ⁄4 in. ID 1 x x x 0.3
-29 U81342-042 WASHER – Spacer, brake control cable pulley 2 x x x 3.14
installation
-30 13215-00 WASHER – Friction, brake lever attachment 1 x x x NM!
-31 U16775-000 CABLE – Parking brake control (less knob) 1 x x x 77.86

Date of Issue – March 1954 124
