BRAKE SHOE ASSEMBLY SECTION VIII
MODEL PA-20 Brake Installation Group

Figure Model
& Index Part Code Nomenclature # Req. PA-20 PA-22
Number Number ‘50 ‘51 ‘52 ‘53 ‘54 ‘51 ‘52 ‘53 ‘54 Price
47- 12637 DRAWING – Brake shoe installation, PA-20 x x x x NM!
-1 451-702 BRAKE SHOE ASSEMBLY – Expander tube 5 x 1 2 x x x x NM!
(Hayes No. D-2-113)
-2 B21-35 SPRING – Retracting 6 x x x x 9.32
-3 A72-30 SHIELD – Expander tube protector 6 x x x x 29.54
-4 B27-59-1 BLOCK – Brake 6 x x x x 73.02
-5 MS35266-61 SCREW – Fillister head (No. 10-32 x ⁄8 in.) 6 x x x x 0.38
3
-6 MS21044N3 NUT – Elastic stop (No. 10-32) 6 x x x x 0.24
-7 B51-72 FAIRING – Inner 1 x x x x 107.93
-8 D12-101 FRAME – Brake 1 x x x x 28.13
-9 D15-25 FLANGE – Brake frame 1 x x x x 50.8
-10 A64-3 SPACER – Nozzle 1 x x x x 6.15
-11 750-031 TUBE ASSEMBLY – Rubber, expander 1 x x x x NM!
-12 B57-239 A FITTING – Brake bleeder 2 x x x x 121.13

A – Note: Not a component part of item No. 1

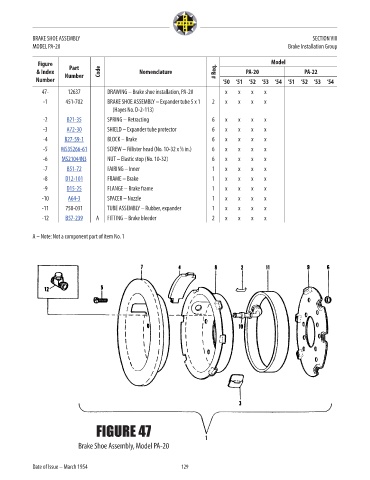

FIGURE 47

Brake Shoe Assembly, Model PA-20

Date of Issue – March 1954 129
