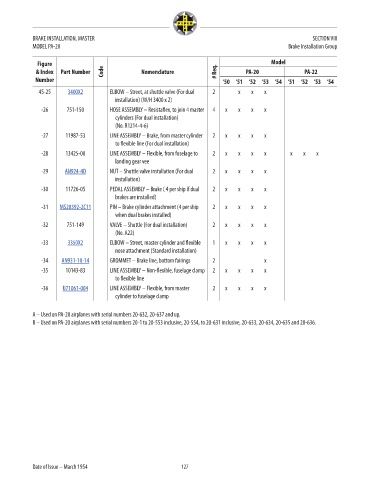

BRAKE INSTALLATION, MASTER SECTION VIII
MODEL PA-20 Brake Installation Group

Figure Model
& Index Part Number Code Nomenclature # Req. PA-20 PA-22
Number ‘50 ‘51 ‘52 ‘53 ‘54 ‘51 ‘52 ‘53 ‘54 Price
45-25 3400X2 ELBOW – Street, at shuttle valve (For dual 2 x x x 2.93
installation) (W/H 3400 x 2)
-26 751-150 HOSE ASSEMBLY – Resistaflex, to join 4 master 4 x x x x NM!
cylinders (For dual installation)
(No. R1214-4-6)
-27 11987-53 LINE ASSEMBLY – Brake, from master cylinder 2 x x x x NM!
to flexible line (For dual installation)
-28 13425-00 LINE ASSEMBLY – Flexible, from fuselage to 2 x x x x x x x NM!
landing gear vee
-29 AN924-4D NUT – Shuttle valve installation (For dual 2 x x x x 2.14
installation)
-30 11726-05 PEDAL ASSEMBLY – Brake ( 4 per ship if dual 2 x x x x NM!
brakes are installed)
-31 MS20392-2C11 PIN – Brake cylinder attachment (4 per ship 2 x x x x 0.72
when dual brakes installed)
-32 751-149 VALVE – Shuttle (For dual installation) 2 x x x x NM!
(No. A22)
-33 3350X2 ELBOW – Street, master cylinder and flexible 1 x x x x 4.85
nose attachment (Standard installation)
-34 AN931-10-14 GROMMET – Brake line, bottom fairings 2 x 2
-35 10143-83 LINE ASSEMBLY – Non-flexible, fuselage clamp 2 x x x x NM!
to flexible line

-36 U71061-004 LINE ASSEMBLY – Flexible, from master 2 x x x x 178.08
cylinder to fuselage clamp

A – Used on PA-20 airplanes with serial numbers 20-632, 20-637 and up.
B – Used on PA-20 airplanes with serial numbers 20-1 to 20-553 inclusive, 20-554, to 20-631 inclusive, 20-633, 20-634, 20-635 and 20-636.

Date of Issue – March 1954 127
