BRAKE CABLE INSTALLATION SECTION VIII
MODEL PA-20 Brake Installation Group

Figure Model
& Index Part Number Code Nomenclature # Req. PA-20 PA-22
Number ‘50 ‘51 ‘52 ‘53 ‘54 ‘51 ‘52 ‘53 ‘54 Price
46-1 11136-00 A CABLE ASSEMBLY – Parking brake at master 1 x x x x NM!
cylinder
-2 12800-00 CABLE ASSEMBLY – Parking brake control 1 x x x x NM!
(less spring)

-3 U10466-008 B CLAMP – Parking brake, control cable 1 x x 26.15
attachment at cylinder
-4 12844-00 B LINK ASSEMBLY – Parking brake control cable 1 x x NM!
attachment to cylinder
-5 487-276 SPRING – Control cable, parking brake, at 1 x x x x NM!
cylinder end
-6 NAS1149FN432P WASHER – Spring stop, parking brake control 3 x x x x 0.04
cable (AN960-4)
751-129 KIT – Seal, master cylinder 2 x x x x NM!

A – Used on PA-20 airplanes with serial numbers 20-1 to 20-384 inclusive, 20-376, 20-377, 20-382, 20-632, 20-637 and up.
B – Used on PA-20 airplanes with serial numbers 20-375, 20-378 to 20-381 inclusive, 20-383 to 20-553 inclusive, 20-554 to 20-631 inclusive, 20-
633, 20-634, 20-635 and 20-636.

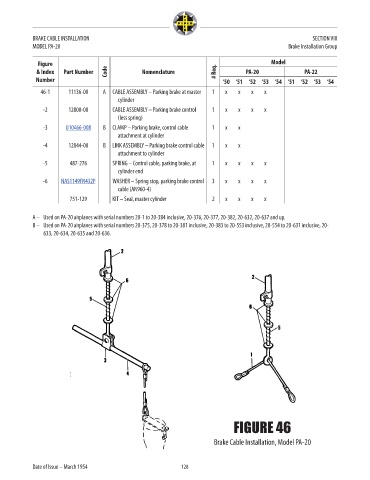

FIGURE 46

Brake Cable Installation, Model PA-20
