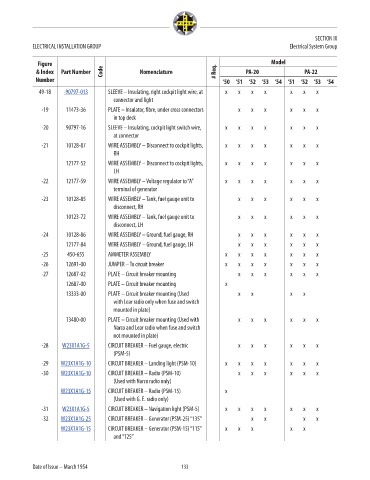

Page 161 - Piper PA-20 Interactive Digital Parts Catalog

SECTION IX
ELECTRICAL INSTALLATION GROUP Electrical System Group

Figure Model
& Index Part Number Code Nomenclature # Req. PA-20 PA-22
Number ‘50 ‘51 ‘52 ‘53 ‘54 ‘51 ‘52 ‘53 ‘54 Price
49-18 -90797-013 SLEEVE – Insulating, right cockpit light wire, at x x x x x x x 0.09
connector and light
-19 11473-36 PLATE – Insulator, fibre, under cross connectors x x x x x x NM!
in top deck

-20 90797-16 SLEEVE – Insulating, cockpit light switch wire, x x x x x x x NM!
at connector
-21 10128-87 WIRE ASSEMBLY – Disconnect to cockpit lights, x x x x x x x NM!
RH
12177-52 WIRE ASSEMBLY – Disconnect to cockpit lights, x x x x x x x NM!
LH
-22 12177-59 WIRE ASSEMBLY – Voltage regulator to “A” x x x x x x x NM!
terminal of generator
-23 10128-85 WIRE ASSEMBLY – Tank, fuel gauge unit to x x x x x x NM!
disconnect, RH
10123-72 WIRE ASSEMBLY – Tank, fuel gauge unit to x x x x x x NM!
disconnect, LH
-24 10128-86 WIRE ASSEMBLY – Ground, fuel gauge, RH x x x x x x NM!
12177-84 WIRE ASSEMBLY – Ground, fuel gauge, LH x x x x x x NM!
-25 450-655 AMMETER ASSEMBLY x x x x x x x NM!
-26 12691-00 JUMPER – To circuit breaker x x x x x x x NM!
-27 12687-02 PLATE – Circuit breaker mounting x x x x x x NM!
12687-00 PLATE – Circuit breaker mounting x NM!
13333-00 PLATE – Circuit breaker mounting (Used x x x x NM!
with Lear radio only when fuse and switch
mounted in plate)
13480-00 PLATE – Circuit breaker mounting (Used with x x x x x x NM!
Narco and Lear radio when fuse and switch
not mounted in plate)
-28 W23X1A1G-5 CIRCUIT BREAKER – Fuel gauge, electric x x x x x x 43.12
(PSM-5)
-29 W23X1A1G-10 CIRCUIT BREAKER – Landing light (PSM-10) x x x x x x x 48.4
-30 W23X1A1G-10 CIRCUIT BREAKER – Radio (PSM-10) x x x x x x 48.4
(Used with Narco radio only)
W23X1A1G-15 CIRCUIT BREAKER – Radio (PSM-15) x 39.96
(Used with G. E. radio only)
-31 W23X1A1G-5 CIRCUIT BREAKER – Navigation light (PSM-5) x x x x x x x 43.12
-32 W23X1A1G-25 CIRCUIT BREAKER – Generator (PSM-25) “135” x x x x 34.32
W23X1A1G-15 CIRCUIT BREAKER – Generator (PSM-15) “115” x x x x x 39.96
and “125”

Date of Issue – March 1954 133
