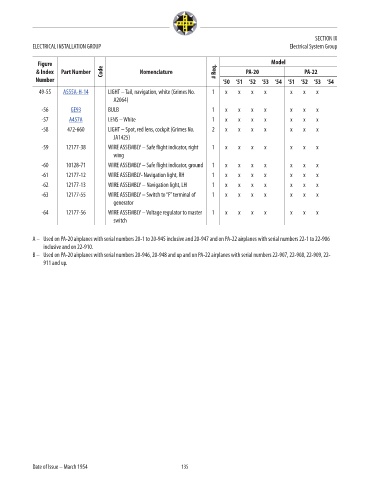

SECTION IX
ELECTRICAL INSTALLATION GROUP Electrical System Group

Figure Model
& Index Part Number Code Nomenclature # Req. PA-20 PA-22
Number ‘50 ‘51 ‘52 ‘53 ‘54 ‘51 ‘52 ‘53 ‘54 Price
49-55 A555A-H-14 LIGHT – Tail, navigation, white (Grimes No. 1 x x x x x x x 257.4
A2064)
-56 GE93 BULB 1 x x x x x x x 4.2
-57 A457A LENS – White 1 x x x x x x x 66.3
-58 472-660 LIGHT – Spot, red lens, cockpit (Grimes No. 2 x x x x x x x NM!
JA1425)
-59 12177-38 WIRE ASSEMBLY – Safe flight indicator, right 1 x x x x x x x NM!
wing
-60 10128-71 WIRE ASSEMBLY – Safe flight indicator, ground 1 x x x x x x x NM!
-61 12177-12 WIRE ASSEMBLY- Navigation light, RH 1 x x x x x x x NM!
-62 12177-13 WIRE ASSEMBLY – Navigation light, LH 1 x x x x x x x NM!
-63 12177-55 WIRE ASSEMBLY – Switch to “F” terminal of 1 x x x x x x x NM!
generator
-64 12177-56 WIRE ASSEMBLY – Voltage regulator to master 1 x x x x x x x NM!
switch

A – Used on PA-20 airplanes with serial numbers 20-1 to 20-945 inclusive and 20-947 and on PA-22 airplanes with serial numbers 22-1 to 22-906
inclusive and on 22-910.
B – Used on PA-20 airplanes with serial numbers 20-946, 20-948 and up and on PA-22 airplanes with serial numbers 22-907, 22-908, 22-909, 22-
911 and up.

Date of Issue – March 1954 135
