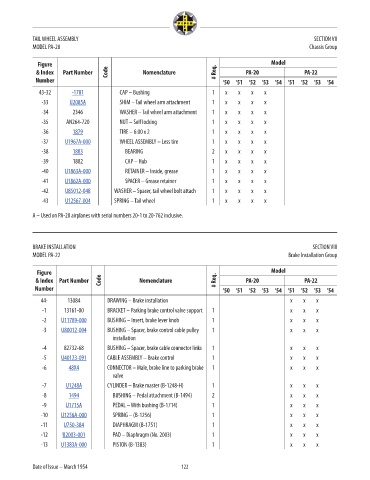

TAIL WHEEL ASSEMBLY SECTION VII
MODEL PA-20 Chassis Group

Figure Model
& Index Part Number Code Nomenclature # Req. PA-20 PA-22
Number ‘50 ‘51 ‘52 ‘53 ‘54 ‘51 ‘52 ‘53 ‘54 Price
43-32 -1781 CAP – Bushing 1 x x x x 71.89
-33 U2085A SHIM – Tail wheel arm attachment 1 x x x x 4.37
-34 2346 WASHER – Tail wheel arm attachment 1 x x x x NM!
-35 AN264-720 NUT – Self locking 1 x x x x NM!
-36 1879 TIRE – 6:00 x 2 1 x x x x 99.15
-37 U1967A-000 WHEEL ASSEMBLY – Less tire 1 x x x x 520.96
-38 1883 BEARING 2 x x x x 99.94
-39 1882 CAP – Hub 1 x x x x NM!
-40 U1863A-000 RETAINER – Inside, grease 1 x x x x 9.77
-41 U1862A-000 SPACER – Grease retainer 1 x x x x 11.19
-42 U85012-048 WASHER – Spacer, tail wheel bolt attach 1 x x x x 9.29
-43 U12567-004 SPRING – Tail wheel 1 x x x x 54.51

A – Used on PA-20 airplanes with serial numbers 20-1 to 20-762 inclusive.

BRAKE INSTALLATION SECTION VIII
MODEL PA-22 Brake Installation Group

Figure Model
& Index Part Number Code Nomenclature # Req. PA-20 PA-22
Number ‘50 ‘51 ‘52 ‘53 ‘54 ‘51 ‘52 ‘53 ‘54 Price
44- 13084 DRAWING – Brake installation x x x NM!
-1 13161-00 BRACKET – Parking brake control valve support 1 x x x NM!
-2 U11789-000 BUSHING – Insert, brake lever knob 1 x x x 17.62
-3 U80012-004 BUSHING – Spacer, brake control cable pulley 1 x x x 7.45
installation
-4 82732-68 BUSHING – Spacer, brake cable connector links 1 x x x NM!
-5 U40123-091 CABLE ASSEMBLY – Brake control 1 x x x 79.18
-6 48X4 CONNECTOR – Male, brake line to parking brake 1 x x x 5.55
valve
-7 U1248A CYLINDER – Brake master (B-1248-H) 1 x x x 1355.04
-8 1494 BUSHING – Pedal attachment (B-1494) 2 x x x 3.8
-9 U1715A PEDAL – With bushing (B-1714) 1 x x x 235.45
-10 U1256A-000 SPRING – (B-1256) 1 x x x 18.39
-11 U750-384 DIAPHRAGM (B-1751) 1 x x x 43.81
-12 U2003-001 PAD – Diaphragm (No. 2003) 1 x x x 40.68
-13 U1383A-000 PISTON (B-1383) 1 x x x 69.61

Date of Issue – March 1954 122
