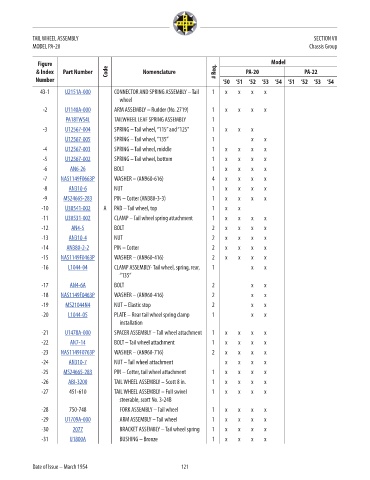

TAIL WHEEL ASSEMBLY SECTION VII
MODEL PA-20 Chassis Group

Figure Model
& Index Part Number Code Nomenclature # Req. PA-20 PA-22
Number ‘50 ‘51 ‘52 ‘53 ‘54 ‘51 ‘52 ‘53 ‘54 Price
43-1 U2151A-000 CONNECTOR AND SPRING ASSEMBLY – Tail 1 x x x x 80.82
wheel
-2 U1140A-000 ARM ASSEMBLY – Rudder (No. 2719) 1 x x x x 218.93
PA18TWS4L TAILWHEEL LEAF SPRING ASSEMBLY 1 235.37
-3 U12567-004 SPRING – Tail wheel, “115” and “125” 1 x x x 54.51
U12567-005 SPRING – Tail wheel, “135” 1 x x 51.61
-4 U12567-003 SPRING – Tail wheel, middle 1 x x x x 82.79
-5 U12567-002 SPRING – Tail wheel, bottom 1 x x x x 89.62
-6 AN6-26 BOLT 1 x x x x 1.42
-7 NAS1149F0663P WASHER – (AN960-616) 4 x x x x 0.11
-8 AN310-6 NUT 1 x x x x 1.8
-9 MS24665-283 PIN – Cotter (AN380-3-3) 1 x x x x 0.04
-10 U30541-002 A PAD – Tail wheel, top 1 x x 11.38
-11 U30531-002 CLAMP – Tail wheel spring attachment 1 x x x x 102
-12 AN4-5 BOLT 2 x x x x 1.08
-13 AN310-4 NUT 2 x x x x 1.6
-14 AN380-2-2 PIN – Cotter 2 x x x x 0.04
-15 NAS1149F0463P WASHER – (AN960-416) 2 x x x x 0.06
-16 L1044-04 CLAMP ASSEMBLY- Tail wheel, spring, rear, 1 x x 61.89
“135”
-17 AN4-6A BOLT 2 x x 0.22
-18 NAS1149F0463P WASHER – (AN960-416) 2 x x 0.06
-19 MS21044N4 NUT – Elastic stop 2 x x 0.3
-20 L1044-05 PLATE – Rear tail wheel spring clamp 1 x x 20.2
installation
-21 U1478A-000 SPACER ASSEMBLY – Tall wheel attachment 1 x x x x 86.25
-22 AN7-14 BOLT – Tail wheel attachment 1 x x x x 4.35
-23 NAS1149F0763P WASHER – (AN960-716) 2 x x x x 0.17
-24 AN310-7 NUT – Tail wheel attachment x x x x 1.5
-25 MS24665-283 PIN – Cotter, tail wheel attachment 1 x x x x 0.04
-26 ABI-3200 TAIL WHEEL ASSEMBLY – Scott 8 in. 1 x x x x 1862
-27 451-610 TAIL WHEEL ASSEMBLY – Full swivel 1 x x x x NM!
steerable, scott No. 3-24B
-28 750-748 FORK ASSEMBLY – Tail wheel 1 x x x x NM!
-29 U1709A-000 ARM ASSEMBLY – Tail wheel 1 x x x x 520.97
-30 2077 BRACKET ASSEMBLY – Tail wheel spring 1 x x x x 350.48
-31 U1800A BUSHING – Bronze 1 x x x x 65.27

Date of Issue – March 1954 121
