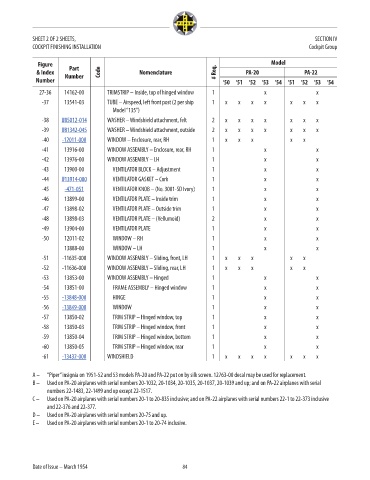

SHEET 2 OF 2 SHEETS, SECTION IV
COCKPIT FINISHING INSTALLATION Cockpit Group

Figure Part Model
& Index Code Nomenclature # Req. PA-20 PA-22
Number Number ‘50 ‘51 ‘52 ‘53 ‘54 ‘51 ‘52 ‘53 ‘54 Price
27-36 14162-00 TRIMSTRIP – Inside, top of hinged window 1 x x NM!
-37 13541-03 TUBE – Airspeed, left front post (2 per ship 1 x x x x x x x NM!
Model “135”)
-38 U85012-014 WASHER – Windshield attachment, felt 2 x x x x x x x 4.67
-39 U81342-045 WASHER – Windshield attachment, outside 2 x x x x x x x 4.62
-40 -12011-000 WINDOW – Enclosure, rear, RH 1 x x x x x 48.26
-41 13916-00 WINDOW ASSEMBLY – Enclosure, rear, RH 1 x x NM!
-42 13976-00 WINDOW ASSEMBLY – LH 1 x x NM!
-43 13900-00 VENTILATOR BLOCK – Adjustment 1 x x NM!
-44 U13914-000 VENTILATOR GASKET – Cork 1 x x 9.58
-45 -471-051 VENTILATOR KNOB – (No. 3001-SD Ivory) 1 x x 2.19
-46 13899-00 VENTILATOR PLATE – Inside trim 1 x x NM!
-47 13898-02 VENTILATOR PLATE – Outside trim 1 x x NM!
-48 13898-03 VENTILATOR PLATE – (Vellumoid) 2 x x NM!
-49 13904-00 VENTILATOR PLATE 1 x x NM!
-50 12011-02 WINDOW – RH 1 x x NM!
13888-00 WINDOW – LH 1 x x NM!
-51 -11635-000 WINDOW ASSEMBLY – Sliding, front, LH 1 x x x x x NM!
-52 -11636-000 WINDOW ASSEMBLY – Sliding, rear, LH 1 x x x x x NM!
-53 13853-00 WINDOW ASSEMBLY – Hinged 1 x x NM!
-54 13851-00 FRAME ASSEMBLY – Hinged window 1 x x NM!
-55 -13848-000 HINGE 1 x x 48.28
-56 -13849-000 WINDOW 1 x x 38.61
-57 13850-02 TRIM STRIP – Hinged window, top 1 x x NM!

-58 13850-03 TRIM STRIP – Hinged window, front 1 x x NM!
-59 13850-04 TRIM STRIP – Hinged window, bottom 1 x x NM!
-60 13850-05 TRIM STRIP – Hinged window, rear 1 x x NM!
-61 -13432-000 WINDSHIELD 1 x x x x x x x 400.21

A – “Piper” insignia on 1951-52 and 53 models PA-20 and PA-22 put on by silk screen. 12763-00 decal may be used for replacement.
B – Used on PA-20 airplanes with serial numbers 20-1032, 20-1034, 20-1035, 20-1037, 20-1039 and up; and on PA-22 airplanes with serial
numbers 22-1483, 22-1499 and up except 22-1517.
C – Used on PA-20 airplanes with serial numbers 20-1 to 20-835 inclusive; and on PA-22 airplanes with serial numbers 22-1 to 22-373 inclusive
and 22-376 and 22-377.
D – Used on PA-20 airplanes with serial numbers 20-75 and up.
E – Used on PA-20 airplanes with serial numbers 20-1 to 20-74 inclusive.

Date of Issue – March 1954 84
