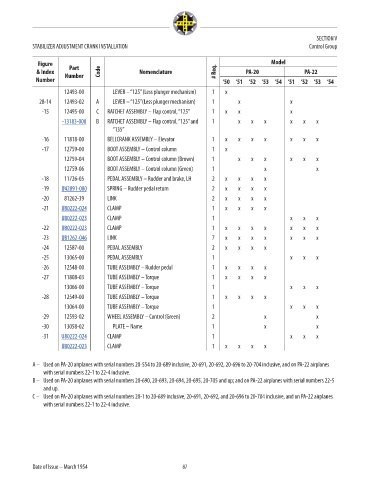

SECTION V
STABILIZER ADJUSTMENT CRANK INSTALLATION Control Group

Figure Model
& Index Part Code Nomenclature # Req. PA-20 PA-22
Number Number ‘50 ‘51 ‘52 ‘53 ‘54 ‘51 ‘52 ‘53 ‘54 Price
12493-00 LEVER – “125” (Less plunger mechanism) 1 x NM!
28-14 12493-02 A LEVER – “125”(Less plunger mechanism) 1 x x NM!
-15 12495-00 C RATCHET ASSEMBLY – Flap control, “125” 1 x x x NM!
-13183-000 B RATCHET ASSEMBLY – Flap control, “125” and 1 x x x x x x 90
“135”
-16 11818-00 BELLCRANK ASSEMBLY – Elevator 1 x x x x x x x NM!
-17 12759-00 BOOT ASSEMBLY – Control column 1 x NM!
12759-04 BOOT ASSEMBLY – Control column (Brown) 1 x x x x x x NM!
12759-06 BOOT ASSEMBLY – Control column (Green) 1 x x NM!
-18 11726-05 PEDAL ASSEMBLY – Rudder and brake, LH 2 x x x x NM!
-19 U42891-000 SPRING – Rudder pedal return 2 x x x x 7.53
-20 81262-39 LINK 2 x x x x NM!
-21 U80222-024 CLAMP 1 x x x x 34.36
U80222-023 CLAMP 1 x x x 36.74
-22 U80222-023 CLAMP 1 x x x x x x x 36.74
-23 U81262-046 LINK 7 x x x x x x x 9.93
-24 12587-00 PEDAL ASSEMBLY 2 x x x x NM!
-25 13065-00 PEDAL ASSEMBLY 1 x x x NM!
-26 12548-00 TUBE ASSEMBLY – Rudder pedal 1 x x x x NM!
-27 11808-03 TUBE ASSEMBLY – Torque 1 x x x x NM!
13066-00 TUBE ASSEMBLY – Torque 1 x x x NM!
-28 12549-00 TUBE ASSEMBLY – Torque 1 x x x x NM!
13064-00 TUBE ASSEMBLY – Torque 1 x x x NM!
-29 12593-02 WHEEL ASSEMBLY – Control (Green) 2 x x NM!
-30 13058-02 PLATE – Name 1 x x NM!
-31 U80222-024 CLAMP 1 x x x 34.36
U80222-023 CLAMP 1 x x x x 36.74

A – Used on PA-20 airplanes with serial numbers 20-554 to 20-689 inclusive, 20-691, 20-692, 20-696 to 20-704 inclusive, and on PA-22 airplanes
with serial numbers 22-1 to 22-4 inclusive.
B – Used on PA-20 airplanes with serial numbers 20-690, 20-693, 20-694, 20-695, 20-705 and up; and on PA-22 airplanes with serial numbers 22-5
and up.
C – Used on PA-20 airplanes with serial numbers 20-1 to 20-689 inclusive, 20-691, 20-692, and 20-696 to 20-704 inclusive, and on PA-22 airplanes
with serial numbers 22-1 to 22-4 inclusive.

Date of Issue – March 1954 87
