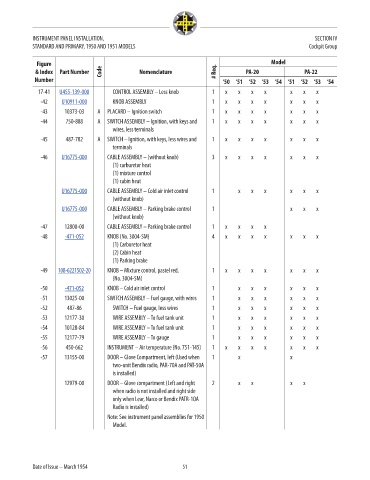

INSTRUMENT PANEL INSTALLATION, SECTION IV
STANDARD AND PRIMARY, 1950 AND 1951 MODELS Cockpit Group

Figure Model
& Index Part Number Code Nomenclature # Req. PA-20 PA-22
Number ‘50 ‘51 ‘52 ‘53 ‘54 ‘51 ‘52 ‘53 ‘54 Price
17-41 U455-139-000 CONTROL ASSEMBLY – Less knob 1 x x x x x x x 423.48
-42 U10911-000 KNOB ASSEMBLY 1 x x x x x x x 12.44
-43 10373-03 A PLACARD – Ignition switch 1 x x x x x x x NM!
-44 750-888 A SWITCH ASSEMBLY – Ignition, with keys and 1 x x x x x x x NM!
wires, less terminals
-45 487-782 A SWITCH – Ignition, with keys, less wires and 1 x x x x x x x NM!
terminals
-46 U16775-000 CABLE ASSEMBLY – (without knob) 3 x x x x x x x 77.86
(1) carburetor heat
(1) mixture control
(1) cabin heat
U16775-000 CABLE ASSEMBLY – Cold air inlet control 1 x x x x x x 77.86
(without knob)
U16775-000 CABLE ASSEMBLY – Parking brake control 1 x x x 77.86
(without knob)
-47 12800-00 CABLE ASSEMBLY – Parking brake control 1 x x x x NM!
-48 -471-052 KNOB (No. 3004-SM) 4 x x x x x x x 5.39
(1) Carburetor heat
(2) Cabin heat
(1) Parking brake
-49 108-6221502-20 KNOB – Mixture control, pastel red, 1 x x x x x x x 6.98
(No. 3004-SM)

-50 -471-052 KNOB – Cold air inlet control 1 x x x x x x 5.39
-51 13025-00 SWITCH ASSEMBLY – Fuel gauge, with wires 1 x x x x x x NM!
-52 487-86 SWITCH – Fuel gauge, less wires 1 x x x x x x NM!
-53 12177-30 WIRE ASSEMBLY – To fuel tank unit 1 x x x x x x NM!
-54 10128-84 WIRE ASSEMBLY – To fuel tank unit 1 x x x x x x NM!
-55 12177-79 WIRE ASSEMBLY – To gauge 1 x x x x x x NM!
-56 450-662 INSTRUMENT – Air temperature (No. 751-145) 1 x x x x x x x NM!
-57 13155-00 DOOR – Glove Compartment, left (Used when 1 x x NM!
two-unit Bendix radio, PAR-70A and PAT-50A
is installed)
12979-00 DOOR – Glove compartment (Left and right 2 x x x x NM!
when radio is not installed and right side
only when Lear, Narco or Bendix PATR-1OA
Radio is installed)
Note: See instrument panel assemblies for 1950 x
Model.

Date of Issue – March 1954 51
