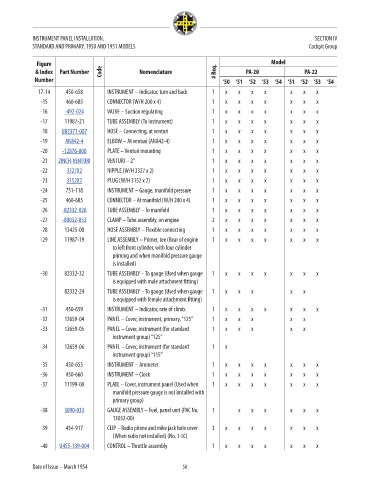

Page 78 - Piper PA-20 Interactive Digital Parts Catalog

INSTRUMENT PANEL INSTALLATION, SECTION IV
STANDARD AND PRIMARY, 1950 AND 1951 MODELS Cockpit Group

Figure Model
& Index Part Number Code Nomenclature # Req. PA-20 PA-22
Number ‘50 ‘51 ‘52 ‘53 ‘54 ‘51 ‘52 ‘53 ‘54 Price
17-14 450-658 INSTRUMENT – Indicator, turn and back 1 x x x x x x x NM!
-15 460-685 CONNECTOR (W/H 200 x 4) 1 x x x x x x x NM!
-16 -492-024 VALVE – Suction regulating 1 x x x x x x x 24.95
-17 11987-21 TUBE ASSEMBLY (To instrument) 1 x x x x x x x NM!
-18 U82371-007 HOSE – Connecting, at venturi 1 x x x x x x x 20.2
-19 AN842-4 ELBOW – At venturi (AN842-4) 1 x x x x x x x 52
-20 -12876-000 PLATE – Venturi mounting 1 x x x x x x x 68.73
-21 2INCH-VENTURI VENTURI – 2” 1 x x x x x x x 56.35
-22 3327X2 NIPPLE (W/H 3327 x 2) 1 x x x x x x x 2.64
-23 3152X2 PLUG (W/H 3152 x 2) 1 x x x x x x x 1.42
-24 751-118 INSTRUMENT – Gauge, manifold pressure 1 x x x x x x x NM!
-25 460-685 CONNECTOR – At manifold (W/H 200 x 4) 1 x x x x x x x NM!
-26 -82332-026 TUBE ASSEMBLY – To manifold 1 x x x x x x x 80.85
-27 -80032-053 CLAMP – Tube assembly, on engine 2 x x x x x x x 16.93
-28 13425-00 HOSE ASSEMBLY – Flexible connecting 1 x x x x x x x NM!

-29 11987-19 LINE ASSEMBLY – Primer, tee (Rear of engine 1 x x x x x x x NM!
to left front cylinder, with four cylinder
priming and when manifold pressure gauge
is installed)
-30 82332-32 TUBE ASSEMBLY – To gauge (Used when gauge 1 x x x x x x x NM!
is equipped with male attachment fitting)
82332-24 TUBE ASSEMBLY – To gauge (Used when gauge 1 x x x x x NM!
is equipped with female attachment fitting)
-31 450-659 INSTRUMENT – Indicator, rate of climb. 1 x x x x x x x NM!
-32 12659-04 PANEL – Cover, instrument, primary, “125” 1 x x x x x NM!
-33 12659-05 PANEL – Cover, instrument (for standard 1 x x x x x NM!
instrument group) “125”
-34 12659-06 PANEL – Cover, instrument (for standard 1 x NM!
instrument group) “115”
-35 450-655 INSTRUMENT – Ammeter 1 x x x x x x x NM!
-36 450-660 INSTRUMENT – Clock 1 x x x x x x x NM!
-37 11199-00 PLATE – Cover, instrument panel (Used when 1 x x x x x x x NM!
manifold pressure gauge is not installed with
primary group)
-38 3090-033 GAUGE ASSEMBLY – Fuel, panel unit (PAC No. 1 x x x x x x 237.42
13032-00)
-39 454-917 CLIP – Radio phone and mike jack hole cover 3 x x x x x x x NM!
(When radio not installed) (No. 1-LC)
-40 U455-139-004 CONTROL – Throttle assembly 1 x x x x x x x 459.53

Date of Issue – March 1954 50
