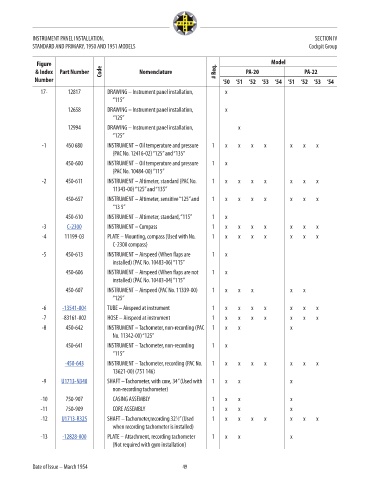

INSTRUMENT PANEL INSTALLATION, SECTION IV
STANDARD AND PRIMARY, 1950 AND 1951 MODELS Cockpit Group

Figure Model
& Index Part Number Code Nomenclature # Req. PA-20 PA-22
Number ‘50 ‘51 ‘52 ‘53 ‘54 ‘51 ‘52 ‘53 ‘54 Price
17- 12817 DRAWING – Instrument panel installation, x NM!
“115”
12658 DRAWING – Instrument panel installation, x NM!
“125”

12994 DRAWING – Instrument panel installation, x NM!
“125”
-1 450 680 INSTRUMENT – Oil temperature and pressure 1 x x x x x x x NM!
(PAC No. 12416-02) “125” and “135”
450-600 INSTRUMENT – Oil temperature and pressure 1 x NM!
(PAC No. 10484-00) “115”
-2 450-611 INSTRUMENT – Altimeter, standard (PAC No. 1 x x x x x x x NM!
11343-00) “125” and “135”
450-657 INSTRUMENT – Altimeter, sensitive “125” and 1 x x x x x x x NM!
“13 5”
450-610 INSTRUMENT – Altimeter, standard, “115” 1 x NM!
-3 C-2300 INSTRUMENT – Compass 1 x x x x x x x 238.25
-4 11199-03 PLATE – Mounting, compass (Used with No. 1 x x x x x x x NM!
C-2300 compass)
-5 450-613 INSTRUMENT – Airspeed (When flaps are 1 x NM!
installed) (PAC No. 10483-06) “115”
450-606 INSTRUMENT – Airspeed (When flaps are not 1 x NM!
installed) (PAC No. 10483-04) “115”
450-607 INSTRUMENT – Airspeed (PAC No. 11339-00) 1 x x x x x NM!
“125”
-6 -13541-004 TUBE – Airspeed at instrument 1 x x x x x x x 13.54
-7 -83161-002 HOSE – Airspeed at instrument 1 x x x x x x x NM!
-8 450-642 INSTRUMENT – Tachometer, non-recording (PAC 1 x x x NM!
No. 11342-00) “125”
450-641 INSTRUMENT – Tachometer, non-recording 1 x NM!
“115”
-450-643 INSTRUMENT – Tachometer, recording (PAC No. 1 x x x x x x x 327.25
13621-00) (751 146)
-9 U1713-N340 SHAFT – Tachometer, with core, 34” (Used with 1 x x x 166.15
non-recording tachometer)

-10 750-907 CASING ASSEMBLY 1 x x x NM!
-11 750-909 CORE ASSEMBLY 1 x x x NM!
-12 U1713-R325 SHAFT – Tachometer,recording 32 ⁄2” (Used 1 x x x x x x x 165.41
1
when recording tachometer is installed)
-13 -12828-000 PLATE – Attachment, recording tachometer 1 x x x 26.44
(Not required with gyro installation)

Date of Issue – March 1954 49
