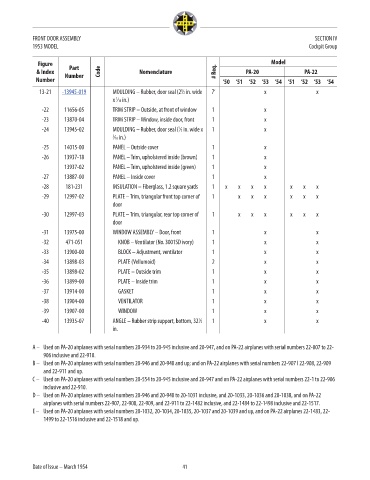

FRONT DOOR ASSEMBLY SECTION IV
1953 MODEL Cockpit Group

Figure Model
& Index Part Code Nomenclature # Req. PA-20 PA-22
Number Number ‘50 ‘51 ‘52 ‘53 ‘54 ‘51 ‘52 ‘53 ‘54 Price
13-21 -13945-019 MOULDING – Rubber, door seal (2 ⁄2 in. wide 7’ x x 61.53
1
x ⁄16 in.)
1
-22 11656-05 TRIM STRIP – Outside, at front of window 1 x NM!
-23 13870-04 TRIM STRIP – Window, inside door, front 1 x NM!
-24 13945-02 MOULDING – Rubber, door seal ( ⁄2 in. wide x 1 x NM!
1
3 ⁄16 in.)
-25 14015-00 PANEL – Outside cover 1 x NM!
-26 13937-18 PANEL – Trim, upholstered inside (brown) 1 x NM!
13937-02 PANEL – Trim, upholstered inside (green) 1 x NM!
-27 13887-00 PANEL – Inside cover 1 x NM!
-28 181-231 INSULATION – Fiberglass, 1.2 square yards 1 x x x x x x x NM!
-29 12997-02 PLATE – Trim, triangular front top corner of 1 x x x x x x NM!
door
-30 12997-03 PLATE – Trim, triangular, rear top corner of 1 x x x x x x NM!
door
-31 13975-00 WINDOW ASSEMBLY – Door, front 1 x x NM!
-32 471-051 KNOB – Ventilator (No. 3001SD ivory) 1 x x NM!
-33 13900-00 BLOCK – Adjustment, ventilator 1 x x NM!
-34 13898-03 PLATE (Vellumoid) 2 x x NM!
-35 13898-02 PLATE – Outside trim 1 x x NM!
-36 13899-00 PLATE – Inside trim 1 x x NM!
-37 13914-00 GASKET 1 x x NM!
-38 13904-00 VENTILATOR 1 x x NM!
-39 13907-00 WINDOW 1 x x NM!
1
-40 13935-07 ANGLE – Rubber strip support, bottom, 32 ⁄2 1 x x NM!
in.

A – Used on PA-20 airplanes with serial numbers 20-934 to 20-945 inclusive and 20-947, and on PA-22 airplanes with serial numbers 22-807 to 22-
906 inclusive and 22-910.
B – Used on PA-20 airplanes with serial numbers 20-946 and 20-948 and up; and on PA-22 airplanes with serial numbers 22-907 I 22-908, 22-909
and 22-911 and up.
C – Used on PA-20 airplanes with serial numbers 20-554 to 20-945 inclusive and 20-947 and on PA-22 airplanes with serial numbers 22-1 to 22-906
inclusive and 22-910.
D – Used on PA-20 airplanes with serial numbers 20-946 and 20-948 to 20-1031 inclusive, and 20-1033, 20-1036 and 20-1038, and on PA-22
airplanes with serial numbers 22-907, 22-908, 22-909, and 22-911 to 22-1482 inclusive, and 22-1484 to 22-1498 inclusive and 22-1517.
E – Used on PA-20 airplanes with serial numbers 20-1032, 20-1034, 20-1035, 20-1037 and 20-1039 and up, and on PA-22 airplanes 22-1483, 22-
1499 to 22-1516 inclusive and 22-1518 and up.

Date of Issue – March 1954 41
