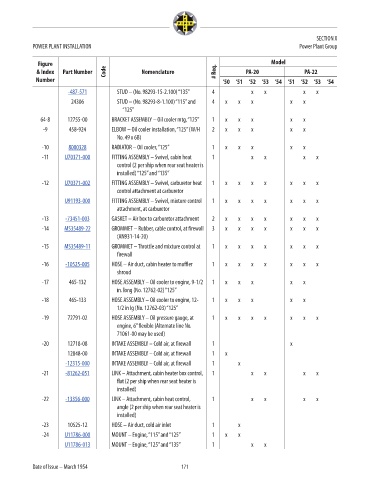

SECTION X
POWER PLANT INSTALLATION Power Plant Group

Figure Model
& Index Part Number Code Nomenclature # Req. PA-20 PA-22
Number ‘50 ‘51 ‘52 ‘53 ‘54 ‘51 ‘52 ‘53 ‘54 Price
-487-571 STUD – (No. 98293-15-2.100) “135” 4 x x x x 16.45
24306 STUD – (No. 98293-8-1.100) “115” and 4 x x x x x NM!
“125”
64-8 12755-00 BRACKET ASSEMBLY – Oil cooler mtg, “125” 1 x x x x x NM!
-9 458-924 ELBOW – Oil cooler installation, “125” (W/H 2 x x x x x NM!
No. 49 x 6B)
-10 8000328 RADIATOR – Oil cooler, “125” 1 x x x x x 756
-11 U70371-000 FITTING ASSEMBLY – Swivel, cabin heat 1 x x x x 56.83
control (2 per ship when rear seat heater is
installed) “125” and “135”
-12 U70371-002 FITTING ASSEMBLY – Swivel, carburetor heat 1 x x x x x x x 15.11
control attachment at carburetor
U91193-000 FITTING ASSEMBLY – Swivel, mixture control 1 x x x x x x x 20.67
attachment, at carburetor
-13 -73451-003 GASKET – Air box to carburetor attachment 2 x x x x x x x 9.99
-14 MS35489-22 GROMMET – Rubber, cable control, at firewall 3 x x x x x x x 2.34
(AN931-14-20)
-15 MS35489-11 GROMMET – Throttle and mixture control at 1 x x x x x x x 0.6
firewall
-16 -10525-005 HOSE – Air duct, cabin heater to muffler 1 x x x x x x x 33.34
shroud
-17 465-132 HOSE ASSEMBLY – Oil cooler to engine, 9-1/2 1 x x x x x NM!
in. long (No. 12762-02) “125”
-18 465-133 HOSE ASSEMBLY – Oil cooler to engine, 12- 1 x x x x x NM!
1/2 in lg (No. 12762-03) “125”
-19 72791-02 HOSE ASSEMBLY – Oil pressure gauge, at 1 x x x x x x x NM!
engine, 6” flexible (Alternate line No.
71061-00 may be used)
-20 12718-08 INTAKE ASSEMBLY – Cold air, at firewall 1 x NM!
12848-00 INTAKE ASSEMBLY – Cold air, at firewall 1 x NM!
-12315-000 INTAKE ASSEMBLY – Cold air, at firewall 1 x 391.95
-21 -81262-051 LINK – Attachment, cabin heater box control, 1 x x x x 31.04
flat (2 per ship when rear seat heater is
installed)

-22 -13356-000 LINK – Attachment, cabin heat control, 1 x x x x 30.08
angle (2 per ship when rear seat heater is
installed)
-23 10525-12 HOSE – Air duct, cold air inlet 1 x NM!
-24 U11786-000 MOUNT – Engine, “115” and “125” 1 x x 1655.25
U11786-013 MOUNT – Engine, “125” and “135” 1 x x 1655.25

Date of Issue – March 1954 171
