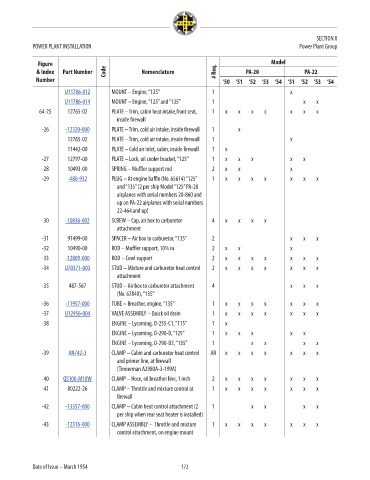

SECTION X
POWER PLANT INSTALLATION Power Plant Group

Figure Model
& Index Part Number Code Nomenclature # Req. PA-20 PA-22
Number ‘50 ‘51 ‘52 ‘53 ‘54 ‘51 ‘52 ‘53 ‘54 Price
U11786-012 MOUNT – Engine, “125” 1 x 1655.25
U11786-014 MOUNT – Engine, “125” and “135” 1 x x 1741.49
64-25 12765-02 PLATE – Trim, cabin heat intake,front seat, 1 x x x x x x x NM!
inside firewall
-26 -12320-000 PLATE – Trim, cold air intake, inside firewall 1 x 9.07
12765-02 PLATE – Trim, cold air intake, inside firewall 1 x NM!
11442-00 PLATE – Cold air inlet, cabin, inside firewall 1 x NM!
-27 12797-00 PLATE – Lock, oil cooler bracket, “125” 1 x x x x x NM!
-28 10493-00 SPRING – Muffler support rod 2 x x x NM!
-29 -480-932 PLUG – At engine baffle (No. 65614) “125” 1 x x x x x x x 3.68
and “135” (2 per ship Model “125” PA-20
airplanes with serial numbers 20-860 and
up on PA-22 airplanes with serial numbers
22-464 and up)
-30 -10836-002 SCREW – Cap, air box to carburetor 4 x x x x 1.84
attachment
-31 91499-00 SPACER – Air box to carburetor, “135” 2 x x x NM!
-32 10490-00 ROD – Muffler support, 10¼ in 2 x x x NM!
-33 -12809-000 ROD – Cowl support 2 x x x x x x x 123.71
-34 U70371-003 STUD – Mixture and carburetor heat control 2 x x x x x x x 26.41
attachment
-35 487-567 STUD – Air box to carburetor attachment 4 x x x NM!
(No. 62840), “135”
-36 -11957-000 TUBE – Breather, engine, “135” 1 x x x x x x x 38.48
-37 U12956-004 VALVE ASSEMBLY – Quick oil drain 1 x x x x x x x 204.68
-38 ENGINE – Lycoming, O-235-C1, “115” 1 x x
ENGINE – Lycoming, O-290-D, “125” 1 x x x x x x
ENGINE – Lycoming, O-290-D2, “135” 1 x x x x x
-39 AN742-3 CLAMP – Cabin and carburetor heat control AR x x x x x x x 0.72
and primer line, at firewall
(Tinnerman A2980A-3-199A)
-40 QS100-M10W CLAMP – Hose, oil breather line, 1 inch 2 x x x x x x x 4.65
-41 80222-26 CLAMP – Throttle and mixture control at 1 x x x x x x x NM!
firewall
-42 -13357-000 CLAMP – Cabin heat control attachment (2 1 x x x x 28.19
per ship when rear seat heater is installed)
-43 -12316-000 CLAMP ASSEMBLY – Throttle and mixture 1 x x x x x x x 122.9
control attachment, on engine mount

Date of Issue – March 1954 172
