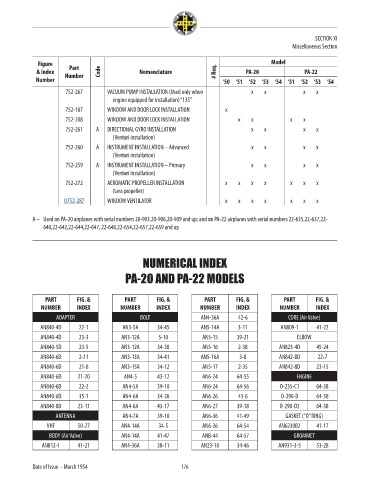

Page 204 - Piper PA-20 Interactive Digital Parts Catalog

SECTION XI
Miscellaneous Section

Figure Model
& Index Part Code Nomenclature # Req. PA-20 PA-22
Number Number ‘50 ‘51 ‘52 ‘53 ‘54 ‘51 ‘52 ‘53 ‘54 Price
752-267 VACUUM PUMP INSTALLATION (Used only when x x x x NM!
engine equipped for installation) “135”
752-187 WINDOW AND DOOR LOCK INSTALLATION x NM!
752-208 WINDOW AND DOOR LOCK INSTALLATION x x x x NM!
752-261 A DIRECTIONAL GYRO INSTALLATION x x x x NM!
(Venturi installation)
752-260 A INSTRUMENT INSTALLATION – Advanced x x x x NM!
(Venturi installation)
752-259 A INSTRUMENT INSTALLATION – Primary x x x x NM!
(Venturi Installation)
752-272 AEROMATIC PROPELLER INSTALLATION x x x x x x x NM!
(Less propeller)
U752-287 WINDOW VENTILATOR x x x x x x x 225.99

A – Used on PA-20 airplanes with serial numbers 20-903,20-906,20-909 and up; and on PA-22 airplanes with serial numbers 22-635,22-637,22-
640,22-642,22-644,22-647, 22-648,22-654,22-657,22-659 and up

NUMERICAL INDEX

PA-20 AND PA-22 MODELS

PART FIG. & PART FIG. & PART FIG. & PART FIG. &
NUMBER INDEX NUMBER INDEX NUMBER INDEX NUMBER INDEX

ADAPTER BOLT AN4-36A 42-6 CORE (Air Valve)
AN840-4D 22-1 AN3-5A 34-45 AN5-14A 3-11 AN809-1 41-22
AN840-4D 23-3 AN3-12A 5-10 AN5-15 39-21 ELBOW
AN840-5D 23-5 AN3-12A 34-38 AN5-16 2-38 AN823-4D 45-24
AN840-6D 2-11 AN3-13A 34-41 AN5-16A 3-8 AN842-8D 22-7
AN840-6D 21-8 AN3-15A 34-12 AN5-17 2-35 AN842-8D 23-15
AN840-6D 21-20 AN4-5 43-12 AN6-24 64-55 ENGINE
AN840-6D 22-2 AN4-5A 39-10 AN6-24 64-56 O-235-C1 64-38
AN840-6D 35-1 AN4-6A 34-26 AN6-26 43-6 O-290-D 64-38
AN840-8D 23-11 AN4-6A 43-17 AN6-27 39-18 O-290-D2 64-38
ANTENNA AN4-7A 39-10 AN6-36 41-49 GASKET (“O” RING)
VHF 50-27 AN4-14A 34-5 AN6-36 64-54 AN6230B2 41-17
BODY (Air Valve) AN4-14A 41-47 ANB-44 64-57 GROMMET
AN812-1 41-21 AN4-36A 38-11 AN23-10 34-46 AN931-3-5 53-28

Date of Issue – March 1954 176
