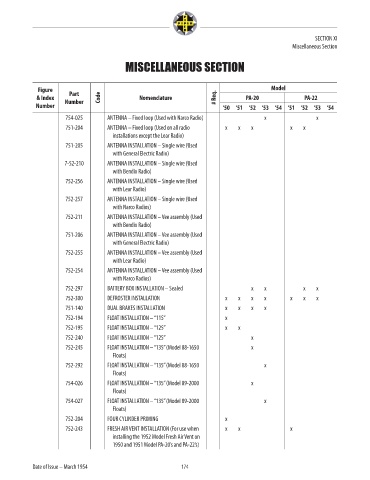

SECTION XI
Miscellaneous Section

MISCELLANEOUS SECTION

Figure Part Model
& Index Code Nomenclature # Req. PA-20 PA-22
Number Number ‘50 ‘51 ‘52 ‘53 ‘54 ‘51 ‘52 ‘53 ‘54 Price
754-025 ANTENNA – Fixed loop (Used with Narco Radio) x x NM!

751-204 ANTENNA – Fixed loop (Used on all radio x x x x x NM!
installations except the Lear Radio)
751-205 ANTENNA INSTALLATION – Single wire (Used NM!
with General Electric Radio)
7-52-210 ANTENNA INSTALLATION – Single wire (Used NM!
with Bendix Radio)
752-256 ANTENNA INSTALLATION – Single wire (Used NM!
with Lear Radio)
752-257 ANTENNA INSTALLATION – Single wire (Used NM!
with Narco Radios)
752-211 ANTENNA INSTALLATION – Vee assembly (Used NM!
with Bendix Radio)
751-206 ANTENNA INSTALLATION – Vee assembly (Used NM!
with General Electric Radio)
752-255 ANTENNA INSTALLATION – Vee assembly (Used NM!
with Lear Radio)
752-254 ANTENNA INSTALLATION – Vee assembly (Used NM!
with Narco Radios)
752-297 BATTERY BOX INSTALLATION – Sealed x x x x NM!
752-300 DEFROSTER INSTALLATION x x x x x x x NM!
751-140 DUAL BRAKES INSTALLATION x x x x NM!
752-194 FLOAT INSTALLATION – “115” x NM!
752-195 FLOAT INSTALLATION – “125” x x NM!
752-240 FLOAT INSTALLATION – “125” x NM!
752-245 FLOAT INSTALLATION – “135” (Model 88-1650 x NM!
Floats)
752-292 FLOAT INSTALLATION – “135” (Model 88-1650 x NM!
Floats)
754-026 FLOAT INSTALLATION – “135” (Model 89-2000 x NM!
Floats)
754-027 FLOAT INSTALLATION – “135” (Model 89-2000 x NM!
Floats)
752-204 FOUR CYLINDER PRIMING x NM!
752-243 FRESH AIR VENT INSTALLATION (For use when x x x NM!
installing the 1952 Model Fresh Air Vent on
1950 and 1951 Model PA-20’s and PA-22’s)

Date of Issue – March 1954 174
