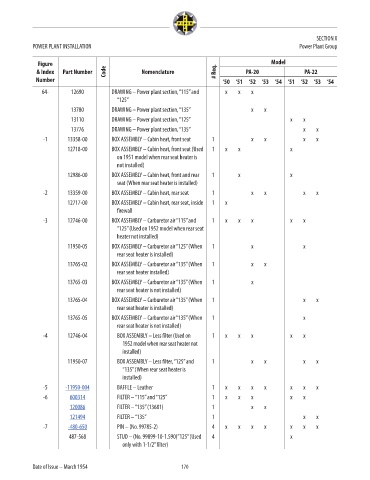

SECTION X
POWER PLANT INSTALLATION Power Plant Group

Figure Model
& Index Part Number Code Nomenclature # Req. PA-20 PA-22
Number ‘50 ‘51 ‘52 ‘53 ‘54 ‘51 ‘52 ‘53 ‘54 Price
64- 12690 DRAWING – Power plant section, “115” and x x x NM!
“125”
13780 DRAWING – Power plant section, “135” x x NM!
13110 DRAWING – Power plant section, “125” x x NM!
13776 DRAWING – Power plant section, “135” x x NM!
-1 13358-00 BOX ASSEMBLY – Cabin heat, front seat 1 x x x x NM!
12718-00 BOX ASSEMBLY – Cabin heat, front seat (Used 1 x x x NM!
on 1951 model when rear seat heater is
not installed)
12986-00 BOX ASSEMBLY – Cabin heat, front and rear 1 x x NM!
seat (When rear seat heater is installed)
-2 13359-00 BOX ASSEMBLY – Cabin heat, rear seat 1 x x x x NM!
12717-00 BOX ASSEMBLY – Cabin heat, rear seat, inside 1 x NM!
firewall
-3 12746-00 BOX ASSEMBLY – Carburetor air “115” and 1 x x x x x NM!
“125” (Used on 1952 model when rear seat
heater not installed)
11950-05 BOX ASSEMBLY – Carburetor air “125” (When 1 x x NM!
rear seat heater is installed)
13765-02 BOX ASSEMBLY – Carburetor air “135” (When 1 x x NM!
rear seat heater installed)
13765-03 BOX ASSEMBLY – Carburetor air “135” (When 1 x NM!
rear seat heater is not installed)
13765-04 BOX ASSEMBLY – Carburetor air “135” (When 1 x x NM!
rear seat heater is installed)
13765-05 BOX ASSEMBLY – Carburetor air “135” (When 1 x NM!
rear seat heater is not installed)
-4 12746-04 BOX ASSEMBLY – Less filter (Used on 1 x x x x x NM!
1952 model when rear seat heater not
installed)
11950-07 BOX ASSEMBLY – Less filter, “125” and 1 x x x x NM!
“135” (When rear seat heater is
installed)
-5 -11950-004 BAFFLE – Leather 1 x x x x x x x 15.92
-6 600314 FILTER – “115” and “125” 1 x x x x x 99.76
120086 FILTER – “135” (13681) 1 x x 92.3
121494 FILTER – “135” 1 x x 177.11
-7 -480-650 PIN – (No. 99785-2) 4 x x x x x x x 2.19
487-568 STUD – (No. 99899-10-1.590)”125” (Used 4 x NM!
only with 1-1/2” filter)

Date of Issue – March 1954 170
