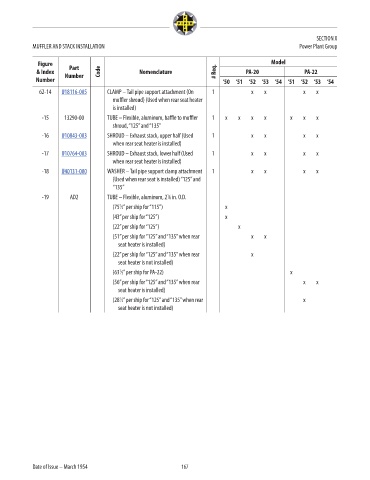

SECTION X
MUFFLER AND STACK INSTALLATION Power Plant Group

Figure Model
& Index Part Code Nomenclature # Req. PA-20 PA-22
Number Number ‘50 ‘51 ‘52 ‘53 ‘54 ‘51 ‘52 ‘53 ‘54 Price
62-14 U18116-005 CLAMP – Tail pipe support attachment (On 1 x x x x 213.77
muffler shroud) (Used when rear seat heater
is installed)
-15 13290-00 TUBE – Flexible, aluminum, baffle to muffler 1 x x x x x x x NM!
shroud, “125” and “135”
-16 U10843-003 SHROUD – Exhaust stack, upper half (Used 1 x x x x 371.35
when rear seat heater is installed)
-17 U10764-003 SHROUD – Exhaust stack, lower half (Used 1 x x x x 276.81
when rear seat heater is installed)
-18 U40131-000 WASHER – Tail pipe support clamp attachment 1 x x x x 9.15
(Used when rear seat is installed) “125” and
“135”
-19 AD2 TUBE – Flexible, aluminum, 2 ⁄8 in. O.D. NM!
1
(75 ⁄2” per ship for “115”) x x
1
(43” per ship for “125”) x x
(22” per ship for “125”) x x
(51” per ship for “125” and “135” when rear x x x
seat heater is installed)
(22” per ship for “125” and “135” when rear x x
seat heater is not installed)
(63 ⁄2” per ship for PA-22) x x
1
(56” per ship for “125” and “135” when rear x x x
seat heater is installed)
(28 ⁄2” per ship for “125” and “135” when rear x x
1
seat heater is not installed)

Date of Issue – March 1954 167
