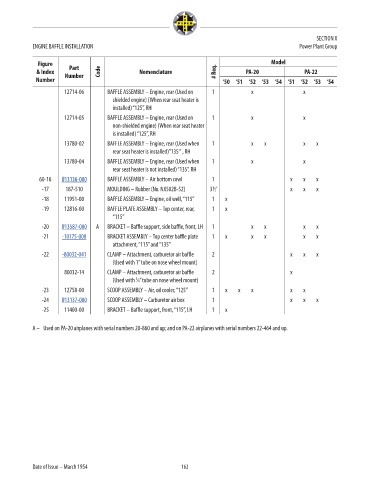

SECTION X
ENGINE BAFFLE INSTALLATION Power Plant Group

Figure Model
& Index Part Code Nomenclature # Req. PA-20 PA-22
Number Number ‘50 ‘51 ‘52 ‘53 ‘54 ‘51 ‘52 ‘53 ‘54 Price
12714-06 BAFFLE ASSEMBLY – Engine, rear (Used on 1 x x NM!
shielded engine) (When rear seat heater is
installed) “125”, RH
12714-05 BAFFLE ASSEMBLY – Engine, rear (Used on 1 x x NM!
non-shielded engine) (When rear seat heater
is installed) “125”, RH
13780-02 BAFFLE ASSEMBLY – Engine, rear (Used when 1 x x x x NM!
rear seat heater is installed)”135 “ , RH
13780-04 BAFFLE ASSEMBLY – Engine, rear (Used when 1 x x NM!
rear seat heater is not installed) “135”, RH
60-16 U13136-000 BAFFLE ASSEMBLY – Air bottom cowl 1 x x x 222.47
-17 187-510 MOULDING – Rubber (No. NX502B-52) 3 ⁄2’ x x x NM!
1
-18 11951-00 BAFFLE ASSEMBLY – Engine, oil well, “115” 1 x NM!
-19 12816-00 BAFFLE PLATE ASSEMBLY – Top center, rear, 1 x NM!
“115”
-20 U13587-000 A BRACKET – Baffle support, side baffle, front, LH 1 x x x x 67.03
-21 -10175-000 BRACKET ASSEMBLY – Top center baffle plate 1 x x x x x 66.13
attachment, “115” and “135”
-22 -80032-041 CLAMP – Attachment, carburetor air baffle 2 x x x 15.62
(Used with 1” tube on nose wheel mount)
80032-14 CLAMP – Attachment, carburetor air baffle 2 x NM!
(Used with ⁄4” tube on nose wheel mount)
3
-23 12758-00 SCOOP ASSEMBLY – Air, oil cooler, “125” 1 x x x x x NM!
-24 U13137-000 SCOOP ASSEMBLY – Carburetor air box 1 x x x 273.32
-25 11400-00 BRACKET – Baffle support, front, “115”, LH 1 x NM!

A – Used on PA-20 airplanes with serial numbers 20-860 and up; and on PA-22 airplanes with serial numbers 22-464 and up.

Date of Issue – March 1954 162
