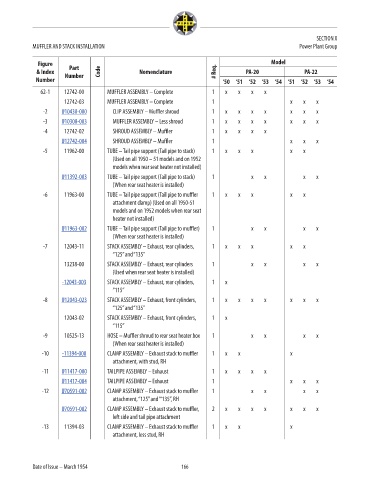

SECTION X
MUFFLER AND STACK INSTALLATION Power Plant Group

Figure Model
& Index Part Code Nomenclature # Req. PA-20 PA-22
Number Number ‘50 ‘51 ‘52 ‘53 ‘54 ‘51 ‘52 ‘53 ‘54 Price
62-1 12742-00 MUFFLER ASSEMBLY – Complete 1 x x x x NM!
12742-03 MUFFLER ASSEMBLY – Complete 1 x x x NM!
-2 U10430-000 CLIP ASSEMBLY – Muffler shroud 1 x x x x x x x 71.23
-3 U10308-003 MUFFLER ASSEMBLY – Less shroud 1 x x x x x x x 2125.17
-4 12742-02 SHROUD ASSEMBLY – Muffler 1 x x x x NM!
U12742-004 SHROUD ASSEMBLY – Muffler 1 x x x 748.44
-5 11962-00 TUBE – Tail pipe support (Tail pipe to stack) 1 x x x x x NM!
(Used on all 1950 – 51 models and on 1952
models when rear seat heater not installed)
U11392-003 TUBE – Tail pipe support (Tail pipe to stack) 1 x x x x 133.92
(When rear seat heater is installed)
-6 11963-00 TUBE – Tail pipe support (Tail pipe to muffler 1 x x x x x NM!
attachment clamp) (Used on all 1950-51
models and on 1952 models when rear seat
heater not installed)
U11963-002 TUBE – Tail pipe support (Tail pipe to muffler) 1 x x x x 115.81
(When rear seat heater is installed)
-7 12043-11 STACK ASSEMBLY – Exhaust, rear cylinders, 1 x x x x x NM!
“125” and “135”
13238-00 STACK ASSEMBLY – Exhaust, rear cylinders 1 x x x x NM!
(Used when rear seat heater is installed)
-12043-003 STACK ASSEMBLY – Exhaust, rear cylinders, 1 x 1292.14
“115”
-8 U12043-023 STACK ASSEMBLY – Exhaust, front cylinders, 1 x x x x x x x 1077.13
“125” and “135”
12043-02 STACK ASSEMBLY – Exhaust, front cylinders, 1 x NM!
“115”
-9 10525-13 HOSE – Muffler shroud to rear seat heater box 1 x x x x NM!
(When rear seat heater is installed)
-10 -11394-000 CLAMP ASSEMBLY – Exhaust stack to muffler 1 x x x 40.94
attachment, with stud, RH
-11 U11417-000 TAILPIPE ASSEMBLY – Exhaust 1 x x x x 251
U11417-004 TAILPIPE ASSEMBLY – Exhaust 1 x x x 320.04
-12 U70591-002 CLAMP ASSEMBLY – Exhaust stack to muffler 1 x x x x 34.61
attachment, “125” and ‘“135”, RH
U70591-002 CLAMP ASSEMBLY – Exhaust stack to muffler, 2 x x x x x x x 34.61
left side and tail pipe attachment
-13 11394-03 CLAMP ASSEMBLY – Exhaust stack to muffler 1 x x x NM!
attachment, less stud, RH

Date of Issue – March 1954 166
