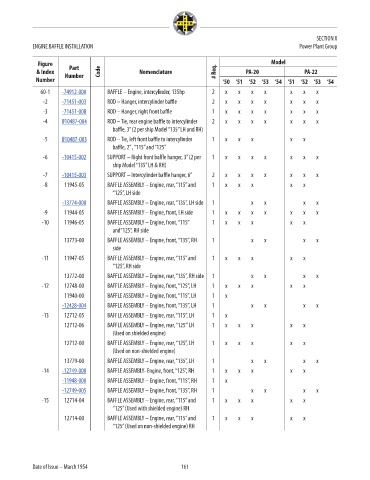

SECTION X
ENGINE BAFFLE INSTALLATION Power Plant Group

Figure Model
& Index Part Code Nomenclature # Req. PA-20 PA-22
Number Number ‘50 ‘51 ‘52 ‘53 ‘54 ‘51 ‘52 ‘53 ‘54 Price
60-1 -74912-000 BAFFLE – Engine, intercylinder, 135hp 2 x x x x x x x 44.85
-2 -71451-003 ROD – Hanger, intercylinder baffle 2 x x x x x x x 55.44
-3 -71451-008 ROD – Hanger, right front baffle 1 x x x x x x x 5.16
-4 U10487-004 ROD – Tie, rear engine baffle to intercylinder 2 x x x x x x x 24.87
baffle, 3” (2 per ship Model “135” LH and RH)
-5 U10487-003 ROD – Tie, left front baffle to intercylinder 1 x x x x x 26.6
baffle, 2” , “115” and “125”
-6 -10415-002 SUPPORT – Right front baffle hanger, 3” (2 per 1 x x x x x x x 34.26
ship Model “135” LH & RH)
-7 -10415-003 SUPPORT – Intercylinder baffle hanger, 6” 2 x x x x x x x 38.75
-8 11945-05 BAFFLE ASSEMBLY – Engine, rear, “115” and 1 x x x x x NM!
“125”, LH side
-13774-000 BAFFLE ASSEMBLY – Engine, rear, “135”, LH side 1 x x x x 143.31
-9 11944-05 BAFFLE ASSEMBLY – Engine, front, LH side 1 x x x x x x x NM!
-10 11946-05 BAFFLE ASSEMBLY – Engine, front, “115” 1 x x x x x NM!
and”125”, RH side
13773-00 BAFFLE ASSEMBLY – Engine, front, “135”, RH 1 x x x x NM!
side
-11 11947-05 BAFFLE ASSEMBLY – Engine, rear, “115” and 1 x x x x x NM!
“125”, RH side
13772-00 BAFFLE ASSEMBLY – Engine, rear, “135”, RH side 1 x x x x NM!
-12 12748-00 BAFFLE ASSEMBLY – Engine, front, “125”, LH 1 x x x x x NM!
11940-00 BAFFLE ASSEMBLY – Engine, front, “115”, LH 1 x NM!
-12428-004 BAFFLE ASSEMBLY – Engine, front, “135”, LH 1 x x x x 327.29
-13 12712-05 BAFFLE ASSEMBLY – Engine, rear, “115”, LH 1 x NM!
12712-06 BAFFLE ASSEMBLY – Engine, rear, “125”’ LH 1 x x x x x NM!
(Used on shielded engine)
12712-00 BAFFLE ASSEMBLY – Engine, rear, “125”, LH 1 x x x x x NM!
(Used on non-shielded engine)
13779-00 BAFFLE ASSEMBLY – Engine, rear, “135”, LH 1 x x x x NM!
-14 -12749-000 BAFFLE ASSEMBLY- Engine, front, “125”, RH 1 x x x x x 231.57
-11948-000 BAFFLE ASSEMBLY – Engine, front, “115”, RH 1 x 274.38
-12749-005 BAFFLE ASSEMBLY – Engine, front, “135”, RH 1 x x x x 229.26
-15 12714-04 BAFFLE ASSEMBLY – Engine, rear, “115” and 1 x x x x x NM!
“125” (Used with shielded engine) RH
12714-00 BAFFLE ASSEMBLY – Engine, rear, “115” and 1 x x x x x NM!
“125” (Used on non-shielded engine) RH

Date of Issue – March 1954 161
