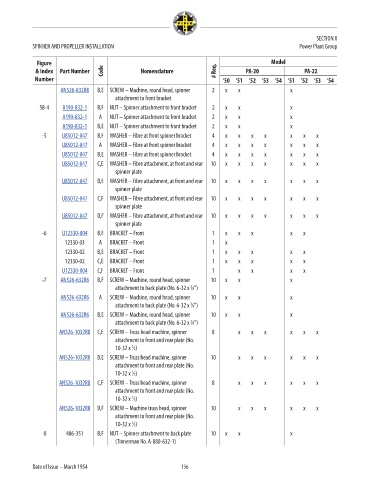

SECTION X
SPINNER AND PROPELLER INSTALLATION Power Plant Group

Figure Model
& Index Part Number Code Nomenclature # Req. PA-20 PA-22
Number ‘50 ‘51 ‘52 ‘53 ‘54 ‘51 ‘52 ‘53 ‘54 Price
AN526-832R8 B,E SCREW – Machine, round head, spinner 2 x x x 0.04
attachment to front bracket
58-4 A190-832-1 B,F NUT – Spinner attachment to front bracket 2 x x x 0.7
A190-832-1 A NUT – Spinner attachment to front bracket 2 x x x 0.7
A190-832-1 B,E NUT – Spinner attachment to front bracket 2 x x x 0.7
-5 U85012-047 B,F WASHER – Fibre at front spinner bracket 4 x x x x x x x 0.83
U85012-047 A WASHER – Fibre at front spinner bracket 4 x x x x x x x 0.83
U85012-047 B,E WASHER – Fibre at front spinner bracket 4 x x x x x x x 0.83
U85012-047 C,E WASHER – Fibre attachment, at front and rear 10 x x x x x x x 0.83
spinner plate
U85012-047 D,E WASHER – Fibre attachment, at front and rear 10 x x x x x x x 0.83
spinner plate
U85012-047 C,F WASHER – Fibre attachment, at front and rear 10 x x x x x x x 0.83
spinner plate
U85012-047 D,F WASHER – Fibre attachment, at front and rear 10 x x x x x x x 0.83
spinner plate
-6 U12330-004 B,F BRACKET – Front 1 x x x x x 59.24
12330-03 A BRACKET – Front 1 x NM!
12330-02 B,E BRACKET – Front 1 x x x x x NM!
12330-02 C,E BRACKET – Front 1 x x x x x NM!
U12330-004 C,F BRACKET – Front 1 x x x x 59.24
-7 AN526-632R6 B,F SCREW – Machine, round head, spinner 10 x x x 0.2
attachment to back plate (No. 6-32 x ⁄8”)
3
AN526-632R6 A SCREW – Machine, round head, spinner 10 x x x 0.2
attachment to back plate (No. 6-32 x ⁄8”)
3
AN526-632R6 B,E SCREW – Machine, round head, spinner 10 x x x 0.2
3
attachment to back plate (No. 6-32 x ⁄8”)
AN526-1032R8 C,E SCREW – Truss head machine, spinner 8 x x x x x x 0.18
attachment to front and rear plate (No.
10-32 x ⁄2)
1
AN526-1032R8 D,E SCREW – Truss head machine, spinner 10 x x x x x x 0.18
attachment to front and rear plate (No.
10-32 x ⁄2)
1
AN526-1032R8 C,F SCREW – Truss head machine, spinner 8 x x x x x x 0.18
attachment to front and rear plate (No.
10-32 x ⁄2)
1
AN526-1032R8 D,F SCREW – Machine truss head, spinner 10 x x x x x x 0.18
attachment to front and rear plate (No.
10-32 x ⁄2)
1
-8 406-351 B,F NUT – Spinner attachment to back plate 10 x x x NM!
(Tinnerman No. A-880-632-1)

Date of Issue – March 1954 156
