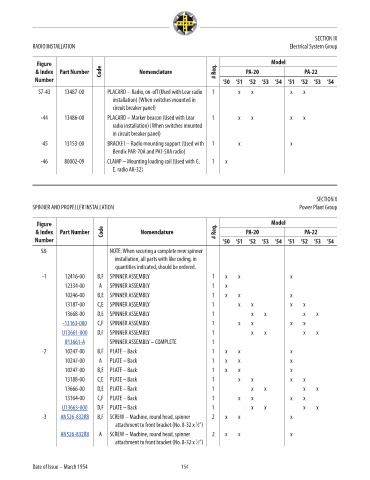

Page 182 - Piper PA-20 Interactive Digital Parts Catalog

SECTION IX
RADIO INSTALLATION Electrical System Group

Figure Model
& Index Part Number Code Nomenclature # Req. PA-20 PA-22
Number ‘50 ‘51 ‘52 ‘53 ‘54 ‘51 ‘52 ‘53 ‘54 Price
57-43 13487-00 PLACARD – Radio, on-off (Used with Lear radio 1 x x x x NM!
installation) (When switches mounted in
circuit breaker panel)
-44 13486-00 PLACARD – Marker beacon (Used with Lear 1 x x x x NM!
radio installation) (When switches mounted
in circuit breaker panel)
-45 13153-00 BRACKET – Radio mounting support (Used with 1 x x NM!
Bendix PAR-70A and PAT-50A radio)
-46 80002-09 CLAMP – Mounting loading coil (Used with G. 1 x NM!
E. radio AK-32)

SECTION X
SPINNER AND PROPELLER INSTALLATION Power Plant Group

Figure Model
& Index Part Number Code Nomenclature # Req. PA-20 PA-22
Number ‘50 ‘51 ‘52 ‘53 ‘54 ‘51 ‘52 ‘53 ‘54 Price
58- NOTE: When securing a complete new spinner x
installation, all parts with like coding, in
quantities indicated, should be ordered.
-1 12416-00 B,F SPINNER ASSEMBLY 1 x x x NM!
12334-00 A SPINNER ASSEMBLY 1 x NM!
10246-00 B,E SPINNER ASSEMBLY 1 x x x NM!
13187-00 C,E SPINNER ASSEMBLY 1 x x x x NM!
13668-00 D,E SPINNER ASSEMBLY 1 x x x x NM!
-13163-000 C,F SPINNER ASSEMBLY 1 x x x x 421.37
U13661-000 D,F SPINNER ASSEMBLY 1 x x x x 397.37
U13661-A SPINNER ASSEMBLY – COMPLETE 1 676.82
-2 10247-00 B,F PLATE – Back 1 x x x NM!
10247-00 A PLATE – Back 1 x x x NM!
10247-00 B,E PLATE – Back 1 x x x NM!
13188-00 C,E PLATE – Back 1 x x x x NM!
13666-00 D,E PLATE – Back 1 x x x x NM!
13164-00 C,F PLATE – Back 1 x x x x NM!
U13663-000 D,F PLATE – Back 1 x x x x 183.48
-3 AN526-832R8 B,F SCREW – Machine, round head, spinner 2 x x x 0.04
attachment to front bracket (No. 8-32 x ⁄2”)
1
AN526-832R8 A SCREW – Machine, round head, spinner 2 x x x 0.04
1
attachment to front bracket (No. 8-32 x ⁄2”)

Date of Issue – March 1954 154
