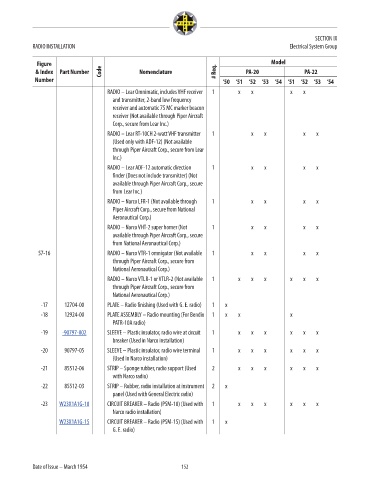

SECTION IX
RADIO INSTALLATION Electrical System Group

Figure Model
& Index Part Number Code Nomenclature # Req. PA-20 PA-22
Number ‘50 ‘51 ‘52 ‘53 ‘54 ‘51 ‘52 ‘53 ‘54 Price
RADIO – Lear Omnimatic, includes VHF receiver 1 x x x x x
and transmitter, 2-band low frequency
receiver and automatic 75 MC marker beacon
receiver (Not available through Piper Aircraft
Corp., secure from Lear Inc.)
RADIO – Lear RT-10CH 2-watt VHF transmitter 1 x x x x x
(Used only with ADF-12) (Not available
through Piper Aircraft Corp., secure from Lear
Inc.)
RADIO – Lear ADF-12 automatic direction 1 x x x x x
finder (Does not include transmitter) (Not
available through Piper Aircraft Corp., secure
from Lear Inc.)
RADIO – Narco LFR-1 (Not available through 1 x x x x x
Piper Aircraft Corp., secure from National
Aeronautical Corp.)
RADIO – Narco VHT-2 super homer (Not 1 x x x x x
available through Piper Aircraft Corp., secure
from National Aeronautical Corp.)
57-16 RADIO – Narco VTR-1 omnigator (Not available 1 x x x x x
through Piper Aircraft Corp., secure from
National Aeronautical Corp.)
RADIO – Narco VTLR-1 or VTLR-2 (Not available 1 x x x x x x x
through Piper Aircraft Corp., secure from
National Aeronautical Corp.)
-17 12704-00 PLATE – Radio finishing (Used with G. E. radio) 1 x NM!
-18 12924-00 PLATE ASSEMBLY – Radio mounting (For Bendix 1 x x x NM!
PATR-10A radio)
-19 -90797-002 SLEEVE – Plastic insulator, radio wire at circuit 1 x x x x x x 2.29
breaker (Used in Narco installation)
-20 90797-05 SLEEVE – Plastic insulator, radio wire terminal 1 x x x x x x NM!
(Used in Narco installation)
-21 85512-06 STRIP – Sponge rubber, radio support (Used 2 x x x x x x NM!
with Narco radio)
-22 85512-03 STRIP – Rubber, radio installation at instrument 2 x NM!
panel (Used with General Electric radio)
-23 W23X1A1G-10 CIRCUIT BREAKER – Radio (PSM-10) (Used with 1 x x x x x x 48.4
Narco radio installation)
W23X1A1G-15 CIRCUIT BREAKER – Radio (PSM-15) (Used with 1 x 39.96
G. E. radio)

Date of Issue – March 1954 152
