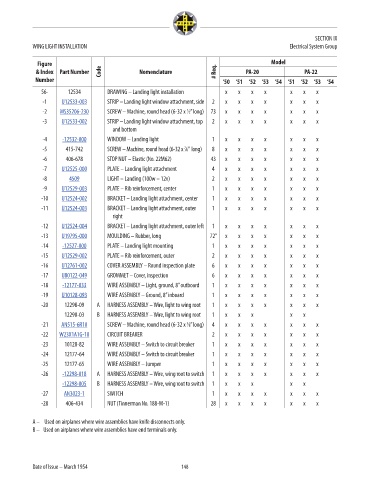

Page 176 - Piper PA-20 Interactive Digital Parts Catalog

SECTION IX
WING LIGHT INSTALLATION Electrical System Group

Figure Model
& Index Part Number Code Nomenclature # Req. PA-20 PA-22
Number ‘50 ‘51 ‘52 ‘53 ‘54 ‘51 ‘52 ‘53 ‘54 Price
56- 12534 DRAWING – Landing light installation x x x x x x x NM!
-1 U12533-003 STRIP – Landing light window attachment, side 2 x x x x x x x 8.27
-2 MS35206-230 SCREW – Machine, round head (6-32 x ⁄2” long) 73 x x x x x x x 0.08
1
-3 U12533-002 STRIP – Landing light window attachment, top 2 x x x x x x x 4.65
and bottom
-4 -12532-000 WINDOW – Landing light 1 x x x x x x x 75.74
-5 415-742 SCREW – Machine, round head (6-32 x ⁄8” long) 8 x x x x x x x NM!
7
-6 406-678 STOP NUT – Elastic (No. 22M62) 43 x x x x x x x NM!
-7 U12525-000 PLATE – Landing light attachment 4 x x x x x x x 51.81
-8 4509 LIGHT – Landing (100w – 12v) 2 x x x x x x x 21.84
-9 U12529-003 PLATE – Rib reinforcement, center 1 x x x x x x x 34.71
-10 U12524-002 BRACKET – Landing light attachment, center 1 x x x x x x x 27.63
-11 U12524-003 BRACKET – Landing light attachment, outer 1 x x x x x x x 20.56
right
-12 U12524-004 BRACKET – Landing light attachment, outer left 1 x x x x x x x 20.46
-13 U19795-000 MOULDING – Rubber, long 72” x x x x x x x 27.08
-14 -12527-000 PLATE – Landing light mounting 1 x x x x x x x 124.85
-15 U12529-002 PLATE – Rib reinforcement, outer 2 x x x x x x x 28.82
-16 U12761-002 COVER ASSEMBLY – Round inspection plate 6 x x x x x x x 46.86
-17 U80122-049 GROMMET – Cover, inspection 6 x x x x x x x 5.7
-18 -12177-033 WIRE ASSEMBLY – Light, ground, 8” outboard 1 x x x x x x x 13.87
-19 U10128-093 WIRE ASSEMBLY – Ground, 8” inboard 1 x x x x x x x 25.8
-20 12298-09 A HARNESS ASSEMBLY – Wire, light to wing root 1 x x x x x x x NM!
12298-03 B HARNESS ASSEMBLY – Wire, light to wing root 1 x x x x x NM!
3
-21 AN515-6R10 SCREW – Machine, round head (6-32 x ⁄8” long) 4 x x x x x x x 0.25
-22 W23X1A1G-10 CIRCUIT BREAKER 2 x x x x x x x 48.4
-23 10128-82 WIRE ASSEMBLY – Switch to circuit breaker 1 x x x x x x x NM!
-24 12177-64 WIRE ASSEMBLY – Switch to circuit breaker 1 x x x x x x x NM!
-25 12177-65 WIRE ASSEMBLY – Jumper 1 x x x x x x x NM!
-26 -12298-018 A HARNESS ASSEMBLY – Wire, wing root to switch 1 x x x x x x x 200.28
-12298-005 B HARNESS ASSEMBLY – Wire, wing root to switch 1 x x x x x 102.88
-27 AN3023-1 SWITCH 1 x x x x x x x 400
-28 406-434 NUT (Tinnerman No. 188-M-1) 28 x x x x x x x NM!

A – Used on airplanes where wire assemblies have knife disconnects only.
B – Used on airplanes where wire assemblies have end terminals only.

Date of Issue – March 1954 148
