Page 174 - Piper PA-20 Interactive Digital Parts Catalog
P. 174
SECTION IX
WING LIGHT INSTALLATION Electrical System Group
Figure Model
& Index Part Code Nomenclature # Req. PA-20 PA-22
Number Number ‘50 ‘51 ‘52 ‘53 ‘54 ‘51 ‘52 ‘53 ‘54 Price
55-1 01-0771105-01 LIGHT – Wing, navigation, green 1 x x x x x x x 311.22
-2 W1290-14 BULB 1 x x x x x x x 95.16
-3 W1284-G LENS – Green 1 x x x x x x x 81.9
-4 01-0771105-02 LIGHT – Wing, navigation, red 1 x x x x x x x 311.22
-5 W1290-14 BULB 1 x x x x x x 95.16
-6 W1284-R LENS – Red 1 x x x x x x 81.9
-7 U12560-000 BRACKET ASSEMBLY – Navigation light 2 x x x x x x x 137.64

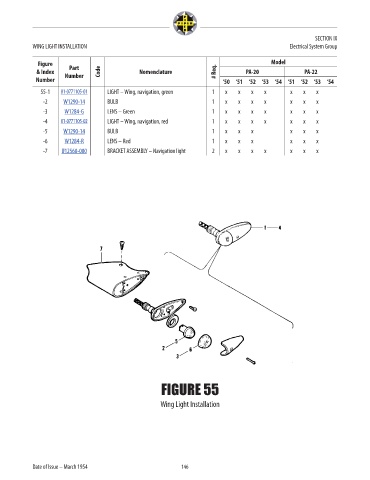

FIGURE 55
Wing Light Installation
