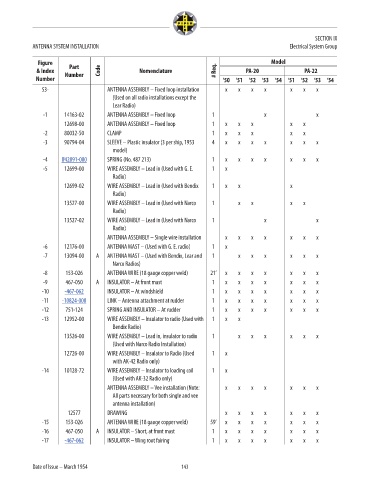

Page 171 - Piper PA-20 Interactive Digital Parts Catalog

SECTION IX
ANTENNA SYSTEM INSTALLATION Electrical System Group

Figure Model
Part
& Index Number Code Nomenclature # Req. PA-20 PA-22
Number ‘50 ‘51 ‘52 ‘53 ‘54 ‘51 ‘52 ‘53 ‘54 Price

53- ANTENNA ASSEMBLY – Fixed loop installation x x x x x x x x
(Used on all radio installations except the
Lear Radio)
-1 14163-02 ANTENNA ASSEMBLY – Fixed loop 1 x x NM!
12698-00 ANTENNA ASSEMBLY – Fixed loop 1 x x x x x NM!
-2 80032-50 CLAMP 1 x x x x x NM!
-3 90794-04 SLEEVE – Plastic insulator (3 per ship, 1953 4 x x x x x x x NM!
model)
-4 U42891-000 SPRING (No. 487 213) 1 x x x x x x x 7.53
-5 12699-00 WIRE ASSEMBLY – Lead in (Used with G. E. 1 x NM!
Radio)
12699-02 WIRE ASSEMBLY – Lead in (Used with Bendix 1 x x x NM!
Radio)
13527-00 WIRE ASSEMBLY – Lead in (Used with Narco 1 x x x x NM!
Radio)
13527-02 WIRE ASSEMBLY – Lead in (Used with Narco 1 x x NM!
Radio)
ANTENNA ASSEMBLY – Single wire installation x x x x x x x x
-6 12176-00 ANTENNA MAST – (Used with G. E. radio) 1 x NM!
-7 13094-00 A ANTENNA MAST – (Used with Bendix, Lear and 1 x x x x x x NM!
Narco Radios)
-8 153-026 ANTENNA WIRE (18 gauge copper weld) 21’ x x x x x x x NM!
-9 467-050 A INSULATOR – At front mast 1 x x x x x x x NM!
-10 -467-062 INSULATOR – At windshield 1 x x x x x x x 3.82
-11 -10824-000 LINK – Antenna attachment at rudder 1 x x x x x x x 8.33
-12 751-124 SPRING AND INSULATOR – At rudder 1 x x x x x x x NM!
-13 12952-00 WIRE ASSEMBLY – Insulator to radio (Used with 1 x x NM!
Bendix Radio)
13526-00 WIRE ASSEMBLY – Lead in, insulator to radio 1 x x x x x x NM!
(Used with Narco Radio Installation)
12726-00 WIRE ASSEMBLY – Insulator to Radio (Used 1 x NM!
with AK-42 Radio only)
-14 10128-72 WIRE ASSEMBLY – Insulator to loading coil 1 x NM!
(Used with AK-32 Radio only)
ANTENNA ASSEMBLY – Vee installation (Note: x x x x x x x x
All parts necessary for both single and vee
antenna installation)
12577 DRAWING x x x x x x x NM!
-15 153-026 ANTENNA WIRE (18 gauge copper weld) 59’ x x x x x x x NM!
-16 467-050 A INSULATOR – Short, at front mast 1 x x x x x x x NM!
-17 -467-062 INSULATOR – Wing root fairing 1 x x x x x x x 3.82

Date of Issue – March 1954 143
