Page 169 - Piper PA-20 Interactive Digital Parts Catalog

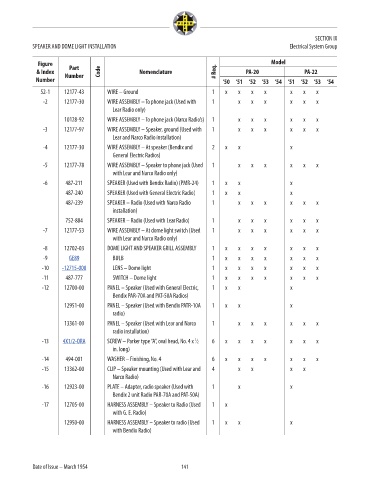

SECTION IX
SPEAKER AND DOME LIGHT INSTALLATION Electrical System Group

Figure Model
& Index Part Code Nomenclature # Req. PA-20 PA-22
Number Number ‘50 ‘51 ‘52 ‘53 ‘54 ‘51 ‘52 ‘53 ‘54 Price
52-1 12177-43 WIRE – Ground 1 x x x x x x x NM!
-2 12177-30 WIRE ASSEMBLY – To phone jack (Used with 1 x x x x x x NM!
Lear Radio only)
10128-92 WIRE ASSEMBLY – To phone jack (Narco Radio’s) 1 x x x x x x NM!
-3 12177-97 WIRE ASSEMBLY – Speaker, ground (Used with 1 x x x x x x NM!
Lear and Narco Radio installation)
-4 12177-30 WIRE ASSEMBLY – At speaker (Bendix and 2 x x x NM!
General Electric Radios)
-5 12177-78 WIRE ASSEMBLY – Speaker to phone jack (Used 1 x x x x x x NM!
with Lear and Narco Radio only)
-6 487-211 SPEAKER (Used with Bendix Radio) (PMR-24) 1 x x x NM!
487-240 SPEAKER (Used with General Electric Radio) 1 x x x NM!
487-239 SPEAKER – Radio (Used with Narco Radio 1 x x x x x x NM!
installation)
752-884 SPEAKER – Radio (Used with Lear Radio) 1 x x x x x x NM!
-7 12177-53 WIRE ASSEMBLY – At dome light switch (Used 1 x x x x x x NM!
with Lear and Narco Radio only)
-8 12702-03 DOME LIGHT AND SPEAKER GRILL ASSEMBLY 1 x x x x x x x NM!
-9 GE89 BULB 1 x x x x x x x 2.42
-10 -12715-000 LENS – Dome light 1 x x x x x x x 158.22
-11 487-777 SWITCH – Dome light 1 x x x x x x x NM!
-12 12700-00 PANEL – Speaker (Used with General Electric, 1 x x x NM!
Bendix PAR-70A and PAT-50A Radios)
12951-00 PANEL – Speaker (Used with Bendix PATR-10A 1 x x x NM!
radio)
13361-00 PANEL – Speaker (Used with Lear and Narco 1 x x x x x x NM!
radio installation)
-13 4X1/2-ORA SCREW – Parker type “A”, oval head, No. 4 x ⁄2 6 x x x x x x x 0.11
1
in. long)
-14 494-001 WASHER – Finishing, No. 4 6 x x x x x x x NM!
-15 13362-00 CLIP – Speaker mounting (Used with Lear and 4 x x x x NM!
Narco Radio)
-16 12923-00 PLATE – Adapter, radio speaker (Used with 1 x x NM!
Bendix 2 unit Radio PAR-70A and PAT-50A)

-17 12705-00 HARNESS ASSEMBLY – Speaker to Radio (Used 1 x NM!
with G. E. Radio)
12950-00 HARNESS ASSEMBLY – Speaker to radio (Used 1 x x x NM!
with Bendix Radio)

Date of Issue – March 1954 141
