SECTION IX
MARKER BEACON ANTENNA INSTALLATION Electrical System Group

Figure Model
Part
& Index Number Code Nomenclature # Req. PA-20 PA-22
Number ‘50 ‘51 ‘52 ‘53 ‘54 ‘51 ‘52 ‘53 ‘54 Price

54- Note: Marker Beacon Antenna Installation x
(Used with Lear and Narco Radios)
13350 DRAWING – Marker beacon installation (Lear) x x x x x x NM!
13523 DRAWING – Marker beacon installation (Narco) x x x x x x NM!
-1 80032-50 CLAMP 1 x x x x x x NM!
-2 80032-46 CLAMP – Ground 1 x x x x x x NM!
-3 CABLE – Coaxial antenna to radio (Not available 1 x x x x x x x
through Piper Aircraft Corporation)
-4 455-160 CONNECTOR – Antenna coaxial cable 1 x x x x NM!
connection (No. 221) when LD-5 dynamotor
installed on floor
-5 MS35489-11 GROMMET – Floorboard (When LD-5 1 x x x x 0.6
dynamotor installed on floor)
-6 U42891-000 SPRING 1 x x x x x x 7.53
-7 467-051 INSULATOR 2 x x x x x x NM!
-8 153-026 WIRE – Antenna 7 x x x x x x NM!
-9 85012-77 WASHER – Coaxial cable installation, through 1 x x x x NM!
fabric (Used with Lear Radio Installation
when LD-5 dynamotor installed on floor)

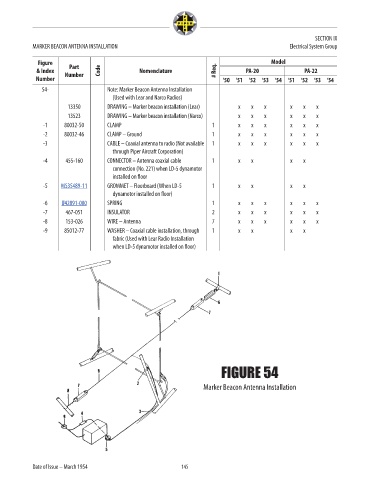

FIGURE 54

Marker Beacon Antenna Installation

Date of Issue – March 1954 145
