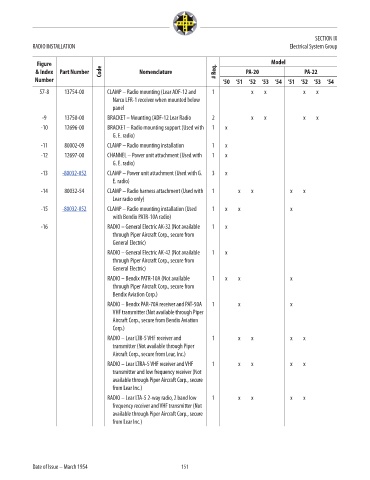

SECTION IX
RADIO INSTALLATION Electrical System Group

Figure Model
& Index Part Number Code Nomenclature # Req. PA-20 PA-22
Number ‘50 ‘51 ‘52 ‘53 ‘54 ‘51 ‘52 ‘53 ‘54 Price
57-8 13754-00 CLAMP – Radio mounting (Lear ADF-12 and 1 x x x x NM!
Narco LFR-1 receiver when mounted below
panel
-9 13750-00 BRACKET – Mounting (ADF-12 Lear Radio 2 x x x x NM!

-10 12696-00 BRACKET – Radio mounting support (Used with 1 x NM!
G. E. radio)
-11 80002-09 CLAMP – Radio mounting installation 1 x NM!
-12 12697-00 CHANNEL – Power unit attachment (Used with 1 x NM!
G. E. radio)
-13 -80032-052 CLAMP – Power unit attachment (Used with G. 3 x 22.45
E. radio)
-14 80032-54 CLAMP – Radio harness attachment (Used with 1 x x x x NM!
Lear radio only)
-15 -80032-052 CLAMP – Radio mounting installation (Used 1 x x x 22.45
with Bendix PATR-10A radio)
-16 RADIO – General Electric AK-32 (Not available 1 x x
through Piper Aircraft Corp., secure from
General Electric)
RADIO – General Electric AK-42 (Not available 1 x x
through Piper Aircraft Corp., secure from
General Electric)
RADIO – Bendix PATR-10A (Not available 1 x x x x
through Piper Aircraft Corp., secure from
Bendix Aviation Corp.)
RADIO – Bendix PAR-70A receiver and PAT-50A 1 x x x
VHF transmitter (Not available through Piper
Aircraft Corp., secure from Bendix Aviation
Corp.)
RADIO – Lear LTR-5 VHF receiver and 1 x x x x x
transmitter (Not available through Piper
Aircraft Corp., secure from Lear, Inc.)
RADIO – Lear LTRA-5 VHF receiver and VHF 1 x x x x x
transmitter and low frequency receiver (Not
available through Piper Aircraft Corp., secure
from Lear Inc.)
RADIO – Lear LTA-5 2-way radio, 2 band low 1 x x x x x
frequency receiver and VHF transmitter (Not
available through Piper Aircraft Corp., secure
from Lear Inc.)

Date of Issue – March 1954 151
